URS − UART Status Register ( Address: 07h )
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
URRD8
EVEN
PRE
PRERR
OVERR
FMERR
URBF
RXE
Bit 7 ( URRD8 ) : Receiving data bit 8
Bit 6 ( EVEN ) : Select parity check
EVEN = “0” : Odd parity
EVEN = “1” : Even parity
Bit 5 ( PRE ) : Enable parity addition
PRE = “0” : Disable
PRE = “1” : Enable
Bit 4 ( PRERR ) : Parity error flag.
Set to 1 when parity error occurred, and cleared to 0 by software.
Bit 3 ( OVERR ) : Overrun error flag.
Set to 1 when overrun error occurred, and cleared to 0 by software.
Bit 2 ( FMERR ) : Framing error flag.
Set to 1 when framing error occurred, and cleared to 0 by software.
Bit 1 ( URBF ) : UART read buffer full flag.
Set to 1 when one character is received. Reset to 0 automatically when read
from the URS register. URBF will be cleared by hardware when receiving is
enabled. URBF bit is read-only. Therefore, reading the URS register is
necessary to avoid an overrun error.
Bit 0 ( RXE ) : Enable receiving
RXE = “0” : Disable
RXE = “1” : Enable
•
URRD − UART Receive Data Buffer ( Address: 08h )
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
URRD7 URRD6 URRD5 URRD4 URRD3 URRD2 URRD1 URRD0

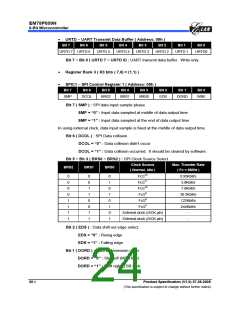

Bit 7 ~ Bit 0 ( URRD7 ~ URRD0 ) : UART receive data buffer. Read only.
