Crane Aerospace & Electronics Power Solutions
sFMc28-461 eMi iꢀꢁuꢂ Fꢃlꢂꢄꢅ caꢆꢄꢆ
28 Voꢇt inpꢈt – 2.7 AMp

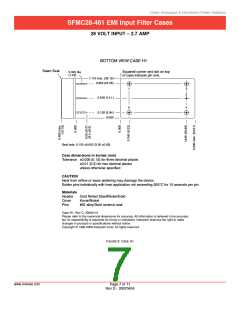

BOTTOM VIEW CASE H1
Seam Seal
Squared corner and dot on top
0.040 dia
(1.02)
of case indicate pin one.
1
1.110 max. (28.19)
0.955 (24.26)
2
3
0.555 (14.1)
5
4
0.155 (3.94)
0.000
Seal hole: 0.120 0.002 (3.05 0.05)
Case dimensions in inches (mm)
Tolerance 0.005 (0.13) for three decimal places
0.01 (0.3) for tꢀo decimal places
unless otherꢀise specified
CAUTION
Heat from refloꢀ or ꢀave soldering may damage the device.
Solder pins individually ꢀith heat application not exceeding 300°C for 10 seconds per pin.
Materials
Header
Cover
Pins
Cold Rolled Steel/Nickel/Gold
Kovar/Nickel
#52 alloy/Gold ceramic seal
Case H1, Rev C, 20060110
Please refer to the numerical dimensions for accuracy. All information is believed to be accurate,
but no responsibility is assumed for errors or omissions. Interpoint reserves the right to make
changes in products or specifications ꢀithout notice.
Copyright © 1999-2006 Interpoint Corp. All rights reserved.
FIgure 6: CaSe H1
www.craneae.com
Page 7 of 11
Rev D - 20070404
