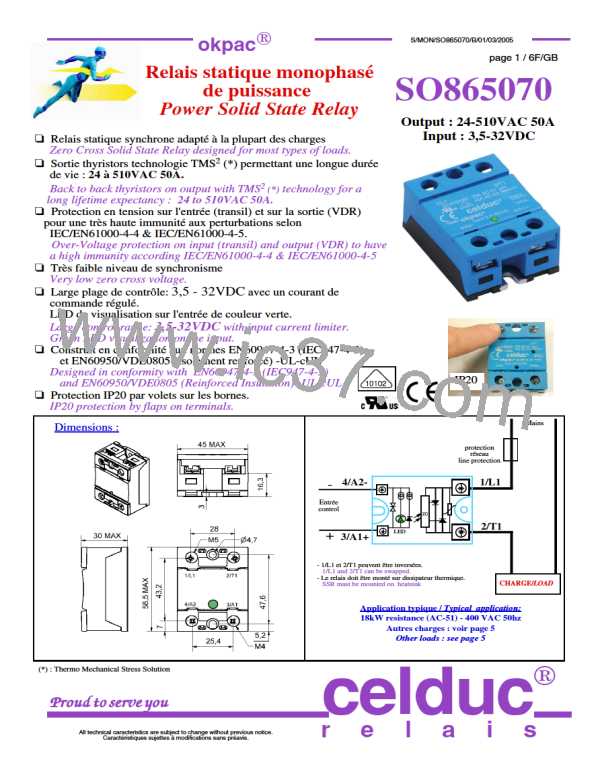

okpac
Relais statique monophasé
de puissance
Power Solid State Relay
Relais statique synchrone adapté à la plupart des charges
Zero Cross Solid State Relay designed for most types of loads.
Sortie thyristors technologie TMS
2
(*) permettant une longue durée
de vie :
24 à 510VAC 50A.
Back to back thyristors on output with TMS
2
(*)
technology for a
long lifetime expectancy :
24 to 510VAC 50A.
Protection en tension sur l'entrée (transil) et sur la sortie (VDR)
pour une très haute immunité aux perturbations selon
IEC/EN61000-4-4 & IEC/EN61000-4-5.
Over-Voltage protection on input (transil) and output (VDR) to have
a high immunity according IEC/EN61000-4-4 & IEC/EN61000-4-5
Très faible niveau de synchronisme
Very low zero cross voltage.
Large plage de contrôle:
3,5 - 32VDC
avec un courant de
commande régulé.
LED de visualisation sur l'entrée de couleur verte.
Large control range:
3,5-32VDC
with input current limiter.
Green LED visualization on the input.
Construit en conformité aux normes EN60947-4-3 (IEC947-4-3)
et EN60950/VDE0805 (Isolement renforcé) -UL-cUL
Designed in conformity with EN60947-4-3 (IEC947-4-3)
and EN60950/VDE0805 (Reinforced Insulation) -UL-cUL
Protection IP20 par volets sur les bornes.
IP20 protection by flaps on terminals.
Dimensions :
S/MON/SO865070/B/01/03/2005
page 1 / 6F/GB
SO865070
Output : 24-510VAC 50A
Input : 3,5-32VDC
IP20
Mains
protection
réseau
line protection
-
Entrée
control
4/A2-
1/L1
ZC
+
3/A1+
LED
2/T1
- 1/L1 2/T1
peuvent être inversées/
* 1/L1 et 2/T2
peuvent être inversées.
1/L1 and
2/T2 can be changed
1/L1 and
2/T1 can be swapped.
-
le
relais
*
Le
relais doit être
monté sur dissipateur thermique.
/
sur dissipateur thermique
SSR must
must be mounted on a heatsink
SSR
be mounted on heatsink
CHARGE/LOAD
Application typique /
Typical application:
18kW resistance (AC-51) - 400 VAC 50hz
Autres charges : voir page 5
Other loads : see page 5
(*) : Thermo Mechanical Stress Solution
Proud to serve you
All technical caracteristics are subject to change without previous notice.
Caractéristiques sujettes à modifications sans préavis.
