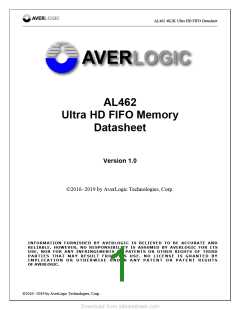

AL462 4K2K Ultra HD FIFO Datasheet
Amendments
Contents
Page
Spec.
preliminary
P.8
Revise Date
08.22.2015
12.10.2015
01.20.2016
Preliminary version 0.01
Preliminary version 0.3
Preliminary version 0.4
&
13
&
Adding flash memory interface for rev. A chip on pin-out information
Modify pin-description
Adding Electrical Characteristic Information
Adding Reference Schematic
Preliminary version 0.5
P.15,16 & 17
P.36 & 37
P.9, P.12
P.36
P.13 P.33
02.18.2016
04.04.2016
-
Adding ROCKO, REO function
Preliminary version 0.6
Pin Description (NC pins)
Two Frame Mode
Preliminary version 0.61
-Revised feature description
Preliminary version 0.7
P.4
07.21.2016
10.29.2016
Change Memory size to 512Mbit in AL462B (MP version) and related
configurations
Chip marking Information
Preliminary version 0.8
-Modify RCKO & REO pinout
Preliminary version 0.95
-Adding power consumption data
Preliminary version 0.96
Modify Miscellaneous Signals pin description
Preliminary version 0.97
Modify RCLK information in Timing chart
Preliminary version 0.98
11.21.2016
01.25.2017
10.06.2017
10.13.2017
12.20.2017
P.11~12
Modify pin description data-
TEST,TMOD0~2,DLL_CFG[2:0],DRAM_CFG[5:0],XIN,VDD33A~H,FV
DD33 and VD33M
Release Version 1.0
04.09.2019
-Modify pin description data- P6 RCKOEN to NC
-Correct AC Characteristics- TDS to 1.5nS
-Remove reference schematic to EVB DOCs
P.8,P.10,P.12
P.16
-
-
Disclaimer
THE CONTENTS OF THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE. AVERLOGIC
TECHNOLOGIES RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AVERLOGIC DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR
CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS. CUSTOMERS ARE ADVISED TO CONSULT WITH
AVERLOGIC OR ITS COMMERCIAL DISTRIBUTORS BEFORE ORDERING.
©2016~2019 by AverLogic Technologies, Corp.
2/38
