Figure 12-5. Brown-out Reset During Operation
VBOT+
VCC
VBOT-
RESET
t
TOUT
TIME-OUT
INTERNAL
RESET
12.2.4
Watchdog Reset

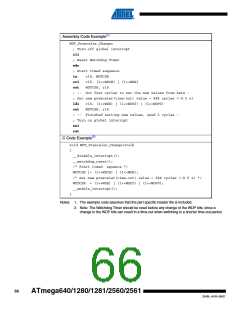

When the Watchdog times out, it will generate a short reset pulse of one CK cycle duration. On
the falling edge of this pulse, the delay timer starts counting the Time-out period tTOUT. See
“Watchdog Timer” on page 55. for details on operation of the Watchdog Timer.
Figure 12-6. Watchdog Reset During Operation
CC
CK
12.3 Internal Voltage Reference
ATmega640/1280/1281/2560/2561 features an internal bandgap reference. This reference is
used for Brown-out Detection, and it can be used as an input to the Analog Comparator or the
ADC.
12.3.1
Voltage Reference Enable Signals and Start-up Time
The voltage reference has a start-up time that may influence the way it should be used. The
start-up time is given in “System and Reset Characteristics” on page 375. To save power, the
reference is not always turned on. The reference is on during the following situations:
1. When the BOD is enabled (by programming the BODLEVEL [2:0] Fuse).
2. When the bandgap reference is connected to the Analog Comparator (by setting the
ACBG bit in ACSR).
3. When the ADC is enabled.
Thus, when the BOD is not enabled, after setting the ACBG bit or enabling the ADC, the user
must always allow the reference to start up before the output from the Analog Comparator or
62
ATmega640/1280/1281/2560/2561
2549L–AVR–08/07
