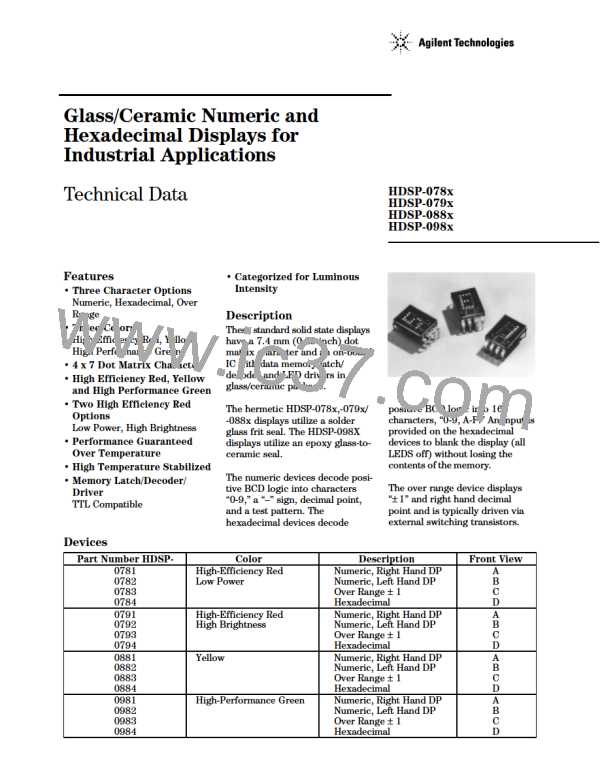

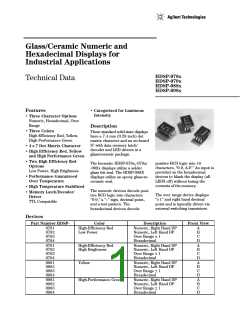

Glass/Ceramic Numeric and
Hexadecimal Displays for
Industrial Applications
HDSP-078x
HDSP-079x
HDSP-088x
HDSP-098x
Technical Data
Features
• Categorized for Luminous
Intensity
• Three Character Options
Numeric, Hexadecimal, Over
Range
• Three Colors
High Efficiency Red, Yellow,
High Performance Green
• 4 x 7 Dot Matrix Character
• High Efficiency Red, Yellow
and High Performance Green
Description
These standard solid state displays
have a 7.4 mm (0.29 inch) dot
matrix character and an on-board
IC with data memory latch/
decoder and LED drivers in a
glass/ceramic package.
• Two High Efficiency Red
Options
Low Power, High Brightness
• Performance Guaranteed
Over Temperature
• High Temperature Stabilized
positive BCD logic into 16
characters, “0-9, A-F.” An input is
provided on the hexadecimal
devices to blank the display (all
LEDS off) without losing the
contents of the memory.
The hermetic HDSP-078x,-079x/
-088x displays utilize a solder
glass frit seal. The HDSP-098X
displays utilize an epoxy glass-to-
ceramic seal.
The numeric devices decode posi-
tive BCD logic into characters
“0-9,” a “–” sign, decimal point,
and a test pattern. The
• Memory Latch/Decoder/
Driver
TTL Compatible
The over range device displays
“± 1” and right hand decimal
point and is typically driven via
external switching transistors.
hexadecimal devices decode
Devices
Part Number HDSP-
Color
Description
Front View
0781
0782
0783
0784
High-Efficiency Red
Low Power
Numeric, Right Hand DP
A
B
C
D
Numeric, Left Hand DP
Over Range ± 1
Hexadecimal
0791
0792
0793
0794
High-Efficiency Red
High Brightness
Numeric, Right Hand DP
Numeric, Left Hand DP
Over Range ± 1
A
B
C
D
Hexadecimal
0881
0882
0883
0884
Yellow
Numeric, Right Hand DP
Numeric, Left Hand DP
Over Range ± 1
A
B
C
D
Hexadecimal
0981
0982
0983
0984
High-Performance Green
Numeric, Right Hand DP
Numeric, Left Hand DP
Over Range ± 1
A
B
C
D
Hexadecimal
