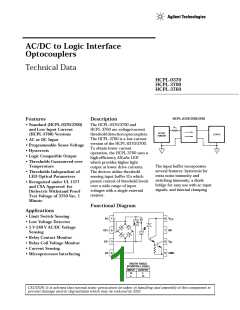

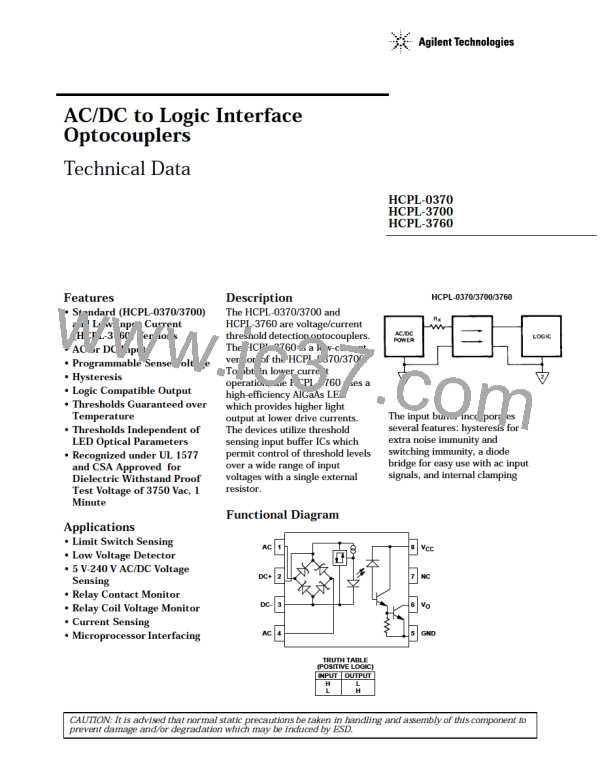

AC/DC to Logic Interface
Optocouplers
Technical Data
HCPL-0370
HCPL-3700
HCPL-3760

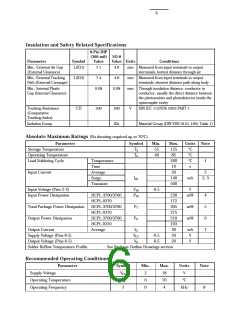

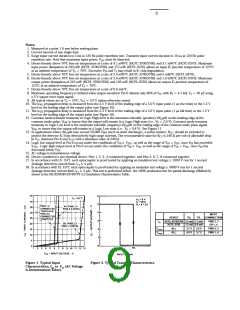

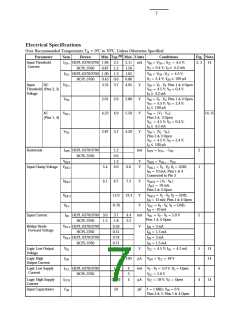

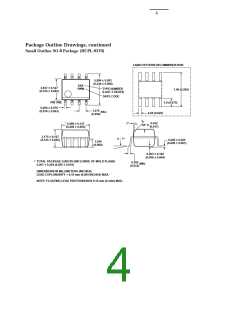

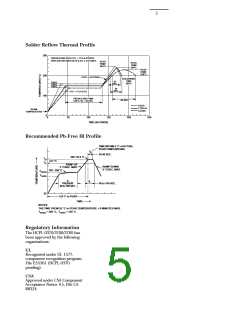

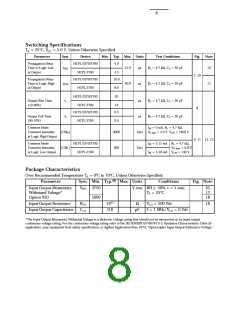

HCPL-0370/3700/3760
Features
Description
• Standard (HCPL-0370/3700)
and Low Input Current
(HCPL-3760) Versions
The HCPL-0370/3700 and
HCPL-3760 are voltage/current
threshold detection optocouplers.
The HCPL-3760 is a low-current
version of the HCPL-0370/3700.
To obtain lower current
• AC or DC Input
• Programmable Sense Voltage
• Hysteresis
operation, the HCPL-3760 uses a
high-efficiency AlGaAs LED
which provides higher light
output at lower drive currents.
The devices utilize threshold
sensing input buffer ICs which
permit control of threshold levels
over a wide range of input
voltages with a single external
resistor.
• Logic Compatible Output
• Thresholds Guaranteed over
Temperature

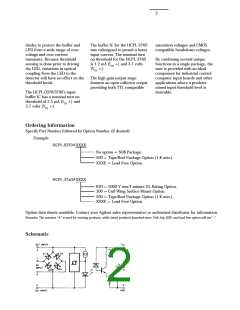

The input buffer incorporates
several features: hysteresis for
extra noise immunity and
switching immunity, a diode
bridge for easy use with ac input
signals, and internal clamping
• Thresholds Independent of
LED Optical Parameters
• Recognized under UL 1577
and CSA Approved for
Dielectric Withstand Proof
Test Voltage of 3750 Vac, 1
Minute
Functional Diagram
Applications
• Limit Sw itch Sensing
AC
1
8
7
6
5
V
CC
• Low Voltage Detector
• 5 V-240 V AC/DC Voltage
Sensing
DC+
DC-
AC
2
3
4
NC
• Relay Contact Monitor
• Relay Coil Voltage Monitor
• Current Sensing
V
O
GND
• Microprocessor Interfacing
TRUTH TABLE
(POSITIVE LOGIC)
INPUT OUTPUT
H
L
L
H
CAUTION: It is a dvised tha t nor ma l sta tic pr eca utions be ta ken in ha ndling a nd a ssembly of this component to
pr event da ma ge a nd/ or degr a da tion which ma y be induced by ESD.
