ADM8690–ADM8695
P aram eter
Min
Typ
Max
Units
Test Conditions/Com m ents
OSCILLAT OR
OSC IN Input Current
±2
µA
OSC SEL Input Pull-Up Current
OSC IN Frequency Range
OSC IN Frequency with External Capacitor
5
µA
kHz
kHz
0
500
OSC SEL = 0 V
OSC SEL = 0 V, C OSC = 47 pF
4
NOT E
1WDI is a three level input which is internally biased to 38% of VCC and has an input impedance of approximately 5 M Ω.
Specifications subject to change without notice.

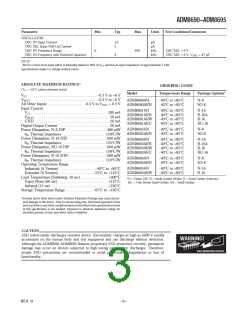

ABSO LUTE MAXIMUM RATINGS*
O RD ERING GUID E
(T A = +25°C unless otherwise noted)
Model
Tem perature Range
P ackage O ptions*
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +6 V
VBAT T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +6 V
All Other Inputs . . . . . . . . . . . . . . . . . . –0.3 V to VOUT + 0.5 V
Input Current
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mA
VBAT T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Power Dissipation, N-8 DIP . . . . . . . . . . . . . . . . . . . . 400 mW
ADM8690AN
ADM8690ARN
–40°C to +85°C
–40°C to +85°C
N-8
SO-8
ADM8691AN
ADM8691ARN
ADM8691ARW
ADM8691ARU
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
N-16
R-16A
R-16
RU-16
ADM8692AN
ADM8692ARN
–40°C to +85°C
–40°C to +85°C
N-8
SO-8
θ
JA T hermal Impedance . . . . . . . . . . . . . . . . . . . . . 120°C/W
Power Dissipation, N-16 DIP . . . . . . . . . . . . . . . . . . . 600 mW
JA T hermal Impedance . . . . . . . . . . . . . . . . . . . . . 135°C/W
Power Dissipation, RU-16 DIP . . . . . . . . . . . . . . . . . . 600 mW
JA T hermal Impedance . . . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation, R-16 SOIC . . . . . . . . . . . . . . . . . . 600 mW
JA T hermal Impedance . . . . . . . . . . . . . . . . . . . . . 110°C/W
ADM8693AN
ADM8693ARN
ADM8693ARW
ADM8693ARU
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
N-16
R-16A
R-16
θ
θ
RU-16
ADM8694AN
ADM8694ARN
–40°C to +85°C
–40°C to +85°C
N-8
SO-8
θ
Operating T emperature Range
ADM8695AN
ADM8695ARW
–40°C to +85°C
–40°C to +85°C
N-16
R-16
Industrial (A Version) . . . . . . . . . . . . . . . . . –40°C to +85°C
Extended (S Version) . . . . . . . . . . . . . . . . . –55°C to +125°C
Lead T emperature (Soldering, 10 sec) . . . . . . . . . . . . . +300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
Storage T emperature Range . . . . . . . . . . . . . –65°C to +150°C
*N = Plastic DIP; R = Small Outline (Wide); R = Small Outline (Narrow);
RU = T hin Shrink Small Outline; SO = Small Outline.
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. T his is a stress rating only; functional operation of the
device at these or any other conditions above those listed in the operational sections
of this specification is not implied. Exposure to absolute maximum ratings for
extended periods of time may affect device reliability.
CAUTIO N
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the ADM8690–ADM8695 features proprietary ESD protection circuitry, permanent
damage may occur on devices subjected to high energy electrostatic discharges. T herefore,
proper ESD precautions are recommended to avoid performance degradation or loss of
functionality.
