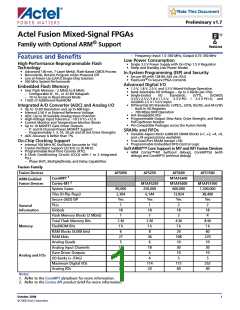

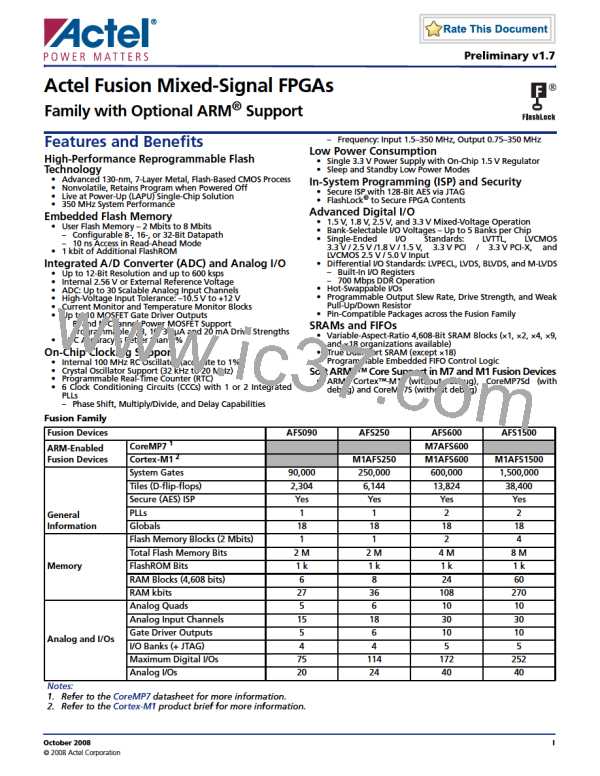

Preliminary v1.7
Actel Fusion Mixed-Signal FPGAs
Family with Optional ARM
®
Support
Features and Benefits
High-Performance Reprogrammable Flash
Technology
Advanced 130-nm, 7-Layer Metal, Flash-Based CMOS Process
Nonvolatile, Retains Program when Powered Off
Live at Power-Up (LAPU) Single-Chip Solution
350 MHz System Performance
– Frequency: Input 1.5–350 MHz, Output 0.75–350 MHz
®
Low Power Consumption
• Single 3.3 V Power Supply with On-Chip 1.5 V Regulator
• Sleep and Standby Low Power Modes
In-System Programming (ISP) and Security
• Secure ISP with 128-Bit AES via JTAG
• FlashLock
®
to Secure FPGA Contents
Embedded Flash Memory
• User Flash Memory – 2 Mbits to 8 Mbits
– Configurable 8-, 16-, or 32-Bit Datapath
– 10 ns Access in Read-Ahead Mode
• 1 kbit of Additional FlashROM
Advanced Digital I/O
• 1.5 V, 1.8 V, 2.5 V, and 3.3 V Mixed-Voltage Operation
• Bank-Selectable I/O Voltages – Up to 5 Banks per Chip
• Single-Ended
I/O
Standards:
LVTTL,
LVCMOS
3.3 V / 2.5 V /1.8 V / 1.5 V, 3.3 V PCI / 3.3 V PCI-X, and
LVCMOS 2.5 V / 5.0 V Input
• Differential I/O Standards: LVPECL, LVDS, BLVDS, and M-LVDS
– Built-In I/O Registers
– 700 Mbps DDR Operation
• Hot-Swappable I/Os
• Programmable Output Slew Rate, Drive Strength, and Weak
Pull-Up/Down Resistor
• Pin-Compatible Packages across the Fusion Family
Integrated A/D Converter (ADC) and Analog I/O
Up to 12-Bit Resolution and up to 600 ksps
Internal 2.56 V or External Reference Voltage
ADC: Up to 30 Scalable Analog Input Channels
High-Voltage Input Tolerance: –10.5 V to +12 V
Current Monitor and Temperature Monitor Blocks
Up to 10 MOSFET Gate Driver Outputs
– P- and N-Channel Power MOSFET Support
– Programmable 1, 3, 10, 30 µA and 20 mA Drive Strengths
• ADC Accuracy is Better than 1%
SRAMs and FIFOs
• Variable-Aspect-Ratio 4,608-Bit SRAM Blocks (×1, ×2, ×4, ×9,
and ×18 organizations available)
• True Dual-Port SRAM (except ×18)
• Programmable Embedded FIFO Control Logic
On-Chip Clocking Support
Internal 100 MHz RC Oscillator (accurate to 1%)
Crystal Oscillator Support (32 kHz to 20 MHz)
Programmable Real-Time Counter (RTC)
6 Clock Conditioning Circuits (CCCs) with 1 or 2 Integrated
PLLs
– Phase Shift, Multiply/Divide, and Delay Capabilities
Soft ARM7™ Core Support in M7 and M1 Fusion Devices
• ARM Cortex™-M1 (without debug), CoreMP7Sd (with
debug) and CoreMP7S (without debug)
Fusion Family
Fusion Devices
ARM-Enabled
Fusion Devices
CoreMP7
1
2
AFS090
Cortex-M1
AFS250
M1AFS250
AFS600
M7AFS600
M1AFS600
600,000
13,824
Yes
2
18
2
4M
1k
24
108
10
30
10
5
172
40
AFS1500
M1AFS1500
1,500,000
38,400
Yes
2
18
4
8M
1k
60
270
10
30
10
5
252
40
System Gates
Tiles (D-flip-flops)
Secure (AES) ISP
General
Information
PLLs
Globals
Flash Memory Blocks (2 Mbits)
Total Flash Memory Bits
Memory
FlashROM Bits
RAM Blocks (4,608 bits)
RAM kbits
Analog Quads
Analog Input Channels
Analog and I/Os
Gate Driver Outputs
I/O Banks (+ JTAG)
Maximum Digital I/Os
Analog I/Os
90,000
2,304
Yes
1
18
1
2M
1k
6
27
5
15
5
4
75
20
250,000
6,144
Yes
1
18
1
2M
1k
8
36
6
18
6
4
114
24
Notes:
1. Refer to the
datasheet for more information.
2. Refer to the
product brief for more information.
October 2008
© 2008 Actel Corporation
I
