Figure 1: Current vs. Voltage Profile During Charging Phases.

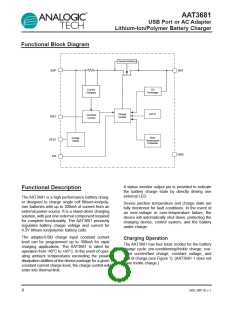

Battery Preconditioning
Constant Voltage Charging

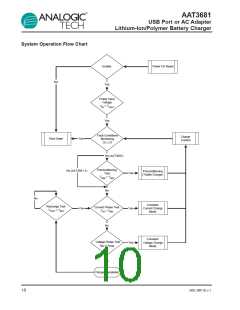

Before the start of charging, the AAT3681 checks
several conditions in order to assure a safe charging
environment. The input supply must be above the
minimum operating voltage, or under-voltage lock-
out threshold (VUVLO), for the charging sequence to
begin. When these conditions have been met and a
battery is connected to the BAT pin, the AAT3681
checks the state of the battery. If the cell voltage is
below the preconditioning voltage threshold (VMIN),
the charge control begins preconditioning the cell.
The battery preconditioning trickle charge current is
equal to the fast charge constant current divided by
10. For example, if the programmed fast charge cur-
rent is 300mA, then the preconditioning mode (trick-
le charge) current will be 30mA. Cell preconditioning
is a safety precaution for deeply discharged battery
cells and also aids in limiting power dissipation in the
pass transistor when the voltage across the device
is at the greatest potential.
The system transitions to a constant voltage charg-
ing mode when the battery voltage reaches the
output charge regulation threshold (VBAT_EOC) dur-
ing the constant current fast charge phase. The
regulation voltage level is factory programmed to
4.2V (±0.5%). Charge current in the constant volt-
age mode drops as the battery cell under charge
reaches its maximum capacity.
End of Charge Cycle Termination and Recharge
Sequence
When the charge current drops to 10% of the pro-
grammed fast charge current level in the constant
voltage mode, the device terminates charging and
goes into a sleep state. The charger will remain in
a sleep state until the battery voltage decreases to
a level below the battery recharge voltage thresh-
old (VRCH).
When the input supply is disconnected, the charg-
er will automatically transition into a power-saving
sleep mode. Only consuming an ultra-low 0.3µA in
sleep mode, the AAT3681 minimizes battery drain
when it is not charging. This feature is particularly
useful in applications where the input supply level
may fall below the battery charge or under-voltage
lockout level. In such cases where the AAT3681
input voltage drops, the device will enter sleep
mode and automatically resume charging once the
input supply has recovered from the fault condition.
Constant Current Charging
Battery cell preconditioning continues until the volt-
age on the BAT pin exceeds the preconditioning
voltage threshold (VMIN). At this point, the AAT3681
begins the constant current charging phase. The

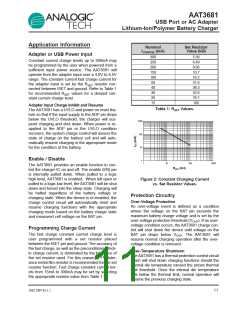

charge constant current (ICH) amplitude is pro-
grammed by the user via the RSET resistor. The
AAT3681 remains in the constant current charge
mode until the battery reaches the voltage regula-
tion point, VBAT_EOC
.
