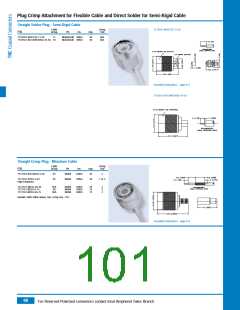

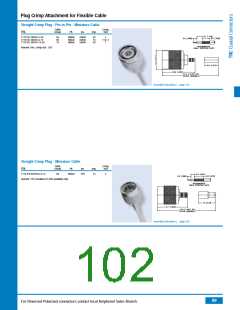

TNC Coaxial Connectors
The Amphenol TNC connectors are made to a high quality level. Medium size coaxial connectors
with thread coupling. 50 ohm impedance for applications up to 11 GHz and 75 ohm impedance up
to 1 GHz. Cable entires full crimp or clamp type with soldered or crimp center contact.
75 Ohm Series
Within the internationally standardized TNC mating face dimensions, a perfect 75 ohm characte-
ristic impedance cannot be realized. However, at frequencies up to 1 GHz, the small impedance
deviation is negligible for practical applications. A typical SWR of 1.15:1 at 1 GHz is achieved.
All 75 ohm TNC connectors and 50 ohm TNC connectors are intermateable.
Electrical Specifications
Impedance
50 ohm
75 ohm
Frequency Range
Working Voltage
Dielectric Withstanding Voltage
VSWR
0-11 GHz
0-1 GHz
500 Volts rms.
500 Volts rms.
1500 Volts rms.
1500 Volts rms.
1.3 max. 0-11 GHz
Center contact 1.5 milliohm
Outer contact 0.2 milliohm
5000 megohm (min)
1.05 + 0.1f (GHz) DC to 1 GHz
Center contact 1.5 milliohm
Outer contact 0.2 milliohm
5000 megohm (min)
Contact Resistance
Insulation Resistance
Material Specifications
Parts Name
Material
Finish
Center
Male
Brass
Gold or Silver plated
Gold or Silver plated
Contact
Female
Phosphor Bronze (nominal) or
Beryllium Copper
Metal parts
Insulators
Brass
Nickel*
None
Teflon, Delrin, PBT polyster
Sillicone rubber, Synthetic rubber
Annealed copper
Clamp gaskets
Crimp ferrule
None
Nickel*
95
