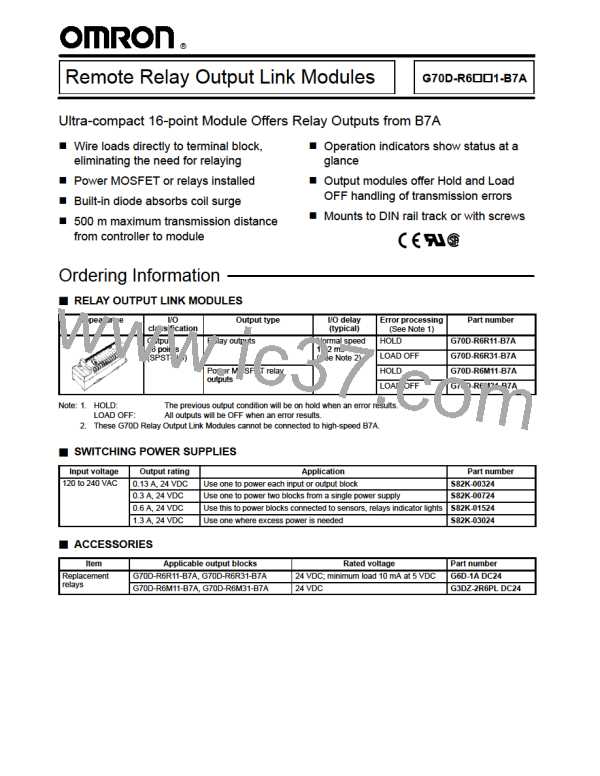

G70D-R6††1-B7A
G70D-R6††1-B7A

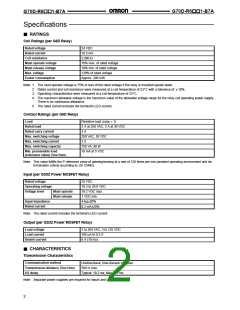

Specifications
3 RATINGS
Coil Ratings (per G6D Relay)
Rated voltage
24 VDC
Rated current
10.5 mA
Coil resistance
2,880 Ω
Must operate voltage
Must release voltage
Max. voltage
70% max. of rated voltage
10% min. of rated voltage
130% of rated voltage
Approx. 200 mW
Power consumption
Note: 1. The must operate voltage is 75% or less of the rated voltage if the relay is mounted upside down.
2. Rated current and coil resistance were measured at a coil temperature of 23EC with a tolerance of á10%.
3. Operating characteristics were measured at a coil temperature of 23EC.
4. The maximum allowable voltage is the maximum value of the allowable voltage range for the relay coil operating power supply.
There is no continuous allowance.
5. The rated current includes the terminal’s LED current.
Contact Ratings (per G6D Relay)
Load
Resistive load (cosφ = 1)
3 A at 250 VAC, 3 A at 30 VDC
3 A
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Max. switching capacity
250 VAC, 30 VDC
3 A
750 VA, 90 W
Min. permissible load
10 mA at 5 VDC
(reference value) (See Note)
Note: This value fulfills the P reference value of opening/closing at a rate of 120 times per min (ambient operating environment and de-
termination criteria according to JIS C5442).
Input (per G3DZ Power MOSFET Relay)
Rated voltage
Operating voltage
Voltage level
24 VDC
19.2 to 28.8 VDC
19.2 VDC max.
1 VDC min.
4 kΩ±20%
Must operate
Must release
Input impedance
Rated current
8.2 mA±20%
Note: The rated current includes the terminal’s LED current.
Output (per G3DZ Power MOSFET Relay)
Load voltage
Load current
Inrush current
3 to 264 VAC, 3 to 125 VDC
100 µA to 0.3 A
6 A (10 ms)
3 CHARACTERISTICS
Transmission Characteristics
Communication method
Transmission distance (See Note)
I/O delay
Unidirectional, time-division multiplex
500 m max.
Typical: 19.2 ms; Max.: 31 ms
Note: Separate power supplies are required for inputs and outputs.
