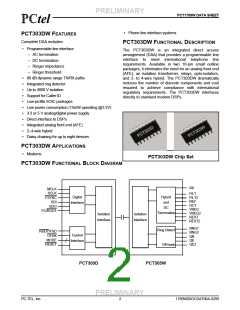

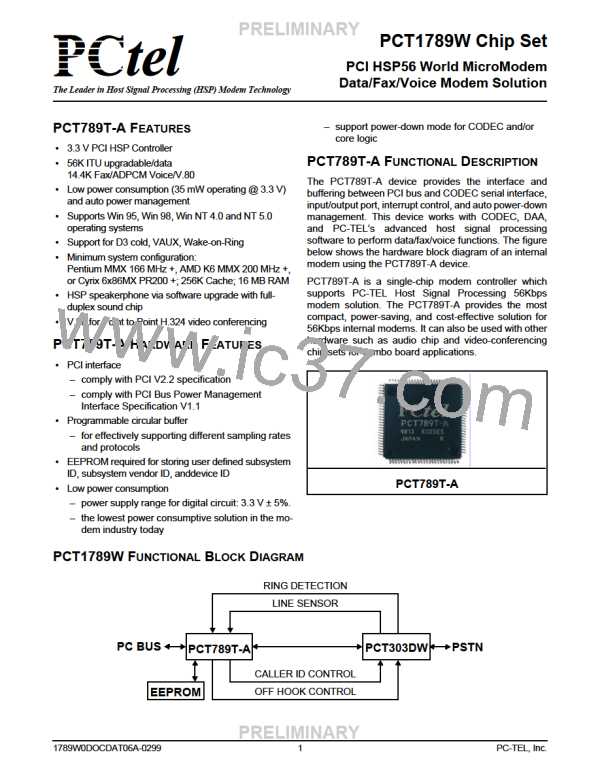

PRELIMINARY
PCT1789W DATA SHEET
!!
• Phone line interface systems
PCT303DW FEATURES
Complete DAA includes:
PCT303DW FUNCTIONAL DESCRIPTION
• Programmable line interface
– AC termination
The PCT303DW is an integrated direct access
arrangement (DAA) that provides a programmable line
interface to meet international telephone line
requirements. Available in two 16-pin small outline
packages, it eliminates the need for an analog front end
(AFE), an isolation transformer, relays, opto-isolators,
and 2- to 4-wire hybrid. The PCT303DW dramatically
reduces the number of discrete components and cost
required to achieve compliance with international
regulatory requirements. The PCT303DW interfaces
directly to standard modem DSPs.
– DC termination
– Ringer impedance
– Ringer threshold
• 86 dB dynamic range TX/RX paths
• Integrated ring detector
• Up to 4000 V isolation
• Support for Caller ID
• Low-profile SOIC packages
• Low power consumption (15mW operating @3.3V)
• 3.3 or 5 V analog/digital power supply
• Direct interface to DSPs
• Integrated analog front end (AFE)
• 2–4-wire hybrid
• Daisy-chaining for up to eight devices
PCT303DW APPLICATIONS
• Modems
PCT303DW Chip Set
PCT303DW FUNCTIONAL BLOCK DIAGRAM
RX
MCLK
SCLK
FSYNC
FILT
FILT2
REF
Digital
Hybrid
and
SDI
SDO
Interface
DCT
DC
VREG
VREG2
REXT
REXT2
FC/RGDT
Isolation
Termination
Isolation
Interface
Interface
RNG1
RNG2
QB
QE
QE2
Ring Detect
Off-hook
RGDT/FSD
Control
OFHK
MODE
RESET
Interface
PCT303D
PCT303W
PRELIMINARY
PC-TEL, Inc.
2
1789W0DOCDAT06A-0299
