NT5DS32M4AT
NT5DS16M8AT
128Mb Double Data Rate SDRAM
tRCD and tRRD Definition
CK
CK
RD/WR
RD/WR
ACT
ROW
BA x
NOP
ACT
ROW
BA y
NOP
NOP
NOP
NOP
Command
A0-A11
COL
BA y
BA0, BA1
t
t
RCD
RRD
Don’ t Care
Reads
Subsequent to programming the mode register with CAS latency, burst type, and burst length, Read bursts are initiated with a
Read command.
The starting column and bank addresses are provided with the Read command and Auto Precharge is either enabled or dis-
abled for that burst access. If Auto Precharge is enabled, the row that is accessed starts precharge at the completion of the
burst, provided tRAS has been satisfied. For the generic Read commands used in the following illustrations, Auto Precharge is
disabled.
During Read bursts, the valid data-out element from the starting column address is available following the CAS latency after the
Read command. Each subsequent data-out element is valid nominally at the next positive or negative clock edge (i.e. at the
next crossing of CK and CK). The following timing figure entitled “Read Burst: CAS Latencies (Burst Length=4)” illustrates the
general timing for each supported CAS latency setting. DQS is driven by the DDR SDRAM along with output data. The initial low
state on DQS is known as the read preamble; the low state coincident with the last data-out element is known as the read post-
amble. Upon completion of a burst, assuming no other commands have been initiated, the DQs and DQS goes High-Z. Data
from any Read burst may be concatenated with or truncated with data from a subsequent Read command. In either case, a con-
tinuous flow of data can be maintained. The first data element from the new burst follows either the last element of a completed
burst or the last desired data element of a longer burst which is being truncated. The new Read command should be issued x
cycles after the first Read command, where x equals the number of desired data element pairs (pairs are required by the 2n
prefetch architecture). This is shown in timing figure entitled “Consecutive Read Bursts: CAS Latencies (Burst Length =4 or 8)”.
A Read command can be initiated on any positive clock cycle following a previous Read command. Nonconsecutive Read data

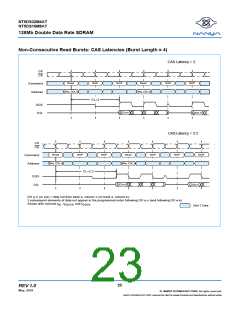

is shown in timing figure entitled “Non-Consecutive Read Bursts: CAS Latencies (Burst Length = 4)”. Full-speed Random Read
Accesses: CAS Latencies (Burst Length = 2, 4 or 8) within a page (or pages) can be performed as shown on page 24.
19
REV 1.0
May, 2001
©
NANYA TECHNOLOGY CORP. All rights reserved.
NANYA TECHNOLOGY CORP. reserves the right to change Products and Specifications without notice.
