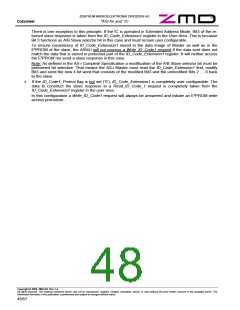

There is one exception to this principle. If the IC is operated in Extended Address Mode, Bit3 of the re-
turned slave response is taken from the ID_Code_Extension1 register in the User Area. This is because
Bit 3 functions as A/B Slave selector bit in this case and must remain user configurable.
To ensure consistency of ID_Code_Extension1 stored in the data image of Master as well as in the
E²PROM of the slave, the ASI4U will not process a Write_ID_Code1 request if the data sent does not
match the data that is stored in protected part of the ID_Code_Extension1 register. It will neither access
the E²PROM nor send a slave response in this case.
Note: As defined in the AS-i Complete Specification a modification of the A/B Slave selector bit must be
performed bit selective. That means the AS-i Master must read the ID_Code_Extension1 first, modify
Bit3 and send the new 4 bit word that consists of the modified Bit3 and the unmodified Bits 2 … 0 back
to the slave.
•
If the ID_Code1_Protect flag is not set (‘0’), ID_Code_Extension1 is completely user configurable. The
data to construct the slave response to a Read_ID_Code_1 request is completely taken from the
ID_Code_Extension1 register in the user area.
In this configuration a Write_ID_Code1 request will always be answered and initiate an E²PROM write
access procedure.
