W25Q80BV

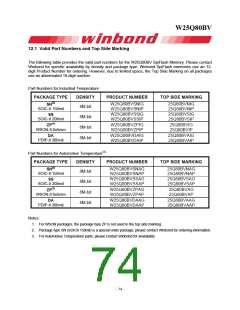

12.1 Valid Part Numbers and Top Side Marking
The following table provides the valid part numbers for the W25Q80BV SpiFlash Memory. Please contact
Winbond for specific availability by density and package type. Winbond SpiFlash memories use an 12-
digit Product Number for ordering. However, due to limited space, the Top Side Marking on all packages
use an abbreviated 10-digit number.
Part Numbers for Industrial Temperature:
PACKAGE TYPE
DENSITY
PRODUCT NUMBER
TOP SIDE MARKING
SN(2)
SOIC-8 150mil
W25Q80BVSNIG
W25Q80BVSNIP
W25Q80BVSSIG
W25Q80BVSSIP
W25Q80BVZPIG
W25Q80BVZPIP
25Q80BVNIG
25Q80BVNIP
25Q80BVSIG
25Q80BVSIP
25Q80BVIG
25Q80BVIP
8M-bit
SS
8M-bit
8M-bit
8M-bit
SOIC-8 208mil
ZP(1)
WSON-8 6x5mm
W25Q80BVDAIG
W25Q80BVDAIP
25Q80BVAIG
25Q80BVAIP
DA
PDIP-8 300mil
Part Numbers for Automotive Temperature(3):
PACKAGE TYPE
DENSITY
PRODUCT NUMBER
TOP SIDE MARKING
SN(2)
SOIC-8 150mil
W25Q80BVSNAG
W25Q80BVSNAP
W25Q80BVSSAG
W25Q80BVSSAP
W25Q80BVZPAG
W25Q80BVZPAP
25Q80BVNAG
25Q80BVNAP
25Q80BVSAG
25Q80BVSAP
25Q80BVAG
25Q80BVAP
8M-bit
SS
8M-bit
8M-bit
8M-bit
SOIC-8 208mil
ZP(1)
WSON-8 6x5mm
W25Q80BVDAAG
W25Q80BVDAAP
25Q80BVAAG
25Q80BVAAP
DA
PDIP-8 300mil
Notes:
1. For WSON packages, the package type ZP is not used in the top side marking.
2. Package type SN (SOIC8 150mil) is a special order package, please contact Winbond for ordering information.
3. For Automotive Temperature parts, please contact Winbond for availability.
- 74 -
