TPS2149
TPS2159
SLVS401 – AUGUST 2001
TYPICAL CHARACTERISTICS
UNDERVOLTAGE LOCKOUT
vs
JUNCTION TEMPERATURE
2.9
2.8
2.7
2.6
2.5
2.4
2.3
2.2
2.1
Rising
Falling
–40 –25 –10
5
20 35 50 65 80 95 110
T
J
– Junction Temperature – °C
Figure 16

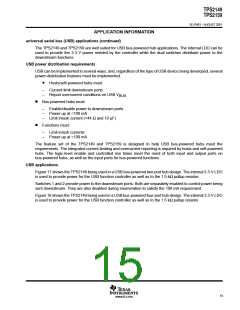

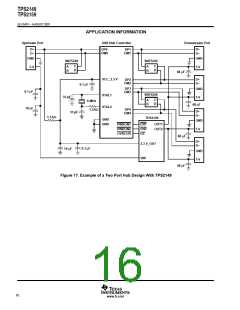

APPLICATION INFORMATION
external capacitor requirements on power lines
A ceramic bypass capacitor (0.01-µF to 0.1-µF) between VIN and GND, close to the device, is recommended
to improve load transient response and noise rejection.
A bulk capacitor (4.7-µF ) between VIN and GND is also recommended, especially if load transients in the
hundreds of milliamps with fast rise times are anticipated.
A 66-µF bulk capacitor is recommended from OUTx to ground, especially when the output load is heavy. This
precaution helps reduce transients seen on the power rails. Additionally, bypassing the outputs with a 0.1-µF
ceramic capacitor improves the immunity of the device to short-circuit transients.
LDO output capacitor requirements
Stabilizing the internal control loop requires an output capacitor connected between LDO_OUT and GND. The
minimum recommended capacitance is a 4.7 µF with an ESR value between 200 mΩ and 10 Ω. Solid tantalum
electrolytic, aluminum electrolytic, and multilayer ceramic capacitors are all suitable, provided they meet the
ESR requirements.
overcurrent
A sense FET is used to measure current through the device. Unlike current-sense resistors, sense FETs do not
increase the series resistance of the current path. When an overcurrent condition is detected, the device
maintains a constant output current. Complete shut down occurs only if the fault is present long enough to
activate thermal limiting.
Three possible overload conditions can occur. In the first condition, the output is shorted before the device is
enabledorbeforeVINhasbeenapplied. TheTPS2149andTPS2159sensetheshortandimmediatelyswitches
to a constant-current output.
