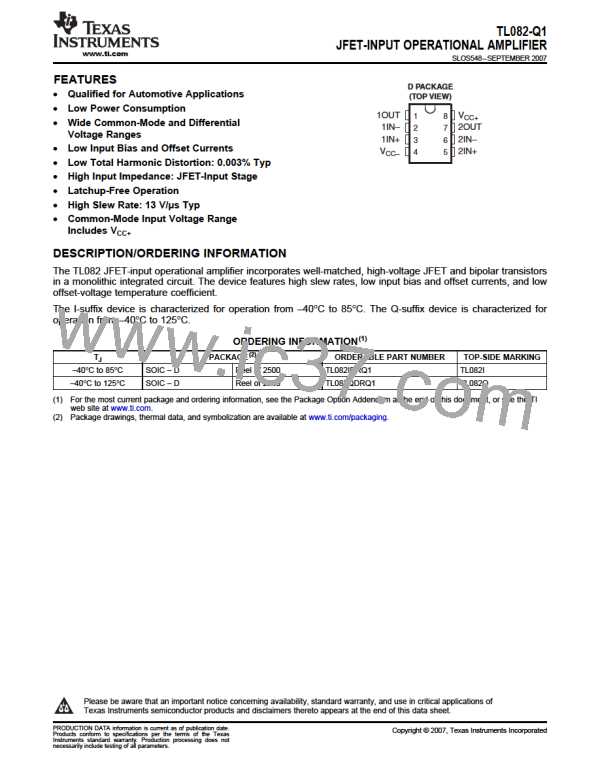

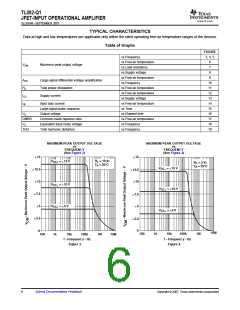

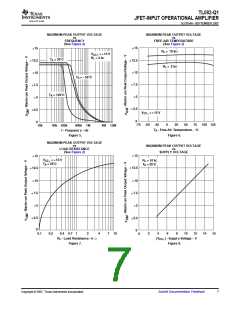

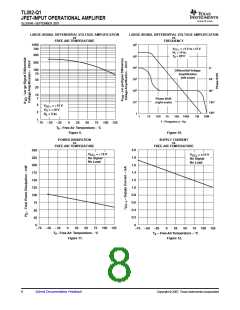

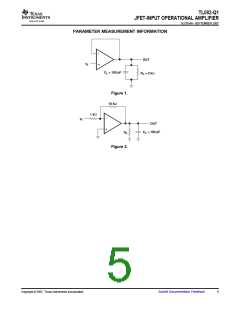

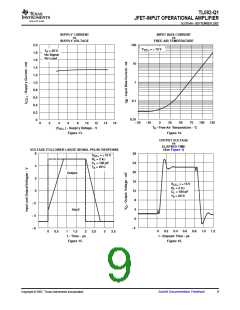

TL082-Q1
JFET-INPUT OPERATIONAL AMPLIFIER
www.ti.com
SLOS548SEPTEMBER 2007

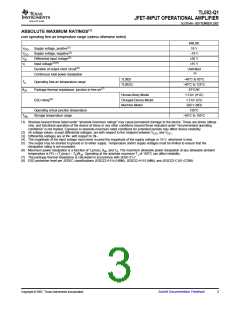

ABSOLUTE MAXIMUM RATINGS(1)
over operating free-air temperature range (unless otherwise noted)
VALUE
18 V
VCC+
VCC–
VID
Supply voltage, positive(2)
Supply voltage, negative(2)
Differential input voltage(3)
Input voltage(2)(4)
–18 V
±30 V
±15 V
VI
Duration of output short circuit(5)
Unlimited
(6)
Continuous total power dissipation
TL082I
–40°C to 85°C
–40°C to 125°C
97°C/W
TA
Operating free-air temperature range
TL082Q
θJA
Package thermal impedance, junction to free air(7)
Human-Body Model
Charged-Device Model
Machine Model
1.5 kV (H1C)
1.5 kV (C5)
200 V (M3)
150°C
ESD rating(8)
Operating virtual junction temperature
Storage temperature range
Tstg
–65°C to 150°C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values, except differential voltages, are with respect to the midpoint between VCC+ and VCC–
.
(3) Differential voltages are at IN+ with respect to IN–.
(4) The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
(5) The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the
dissipation rating is not exceeded.
(6) Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient
temperature is PD = (TJ(max) – TA)/θJA. Operating at the absolute maximum TJ of 150°C can affect reliability.
(7) The package thermal impedance is calculated in accordance with JESD 51-7.
(8) ESD protection level per JEDEC classifications JESD22-A114 (HBM), JESD22-A115 (MM), and JESD22-C101 (CDM).
Copyright © 2007, Texas Instruments Incorporated
Submit Documentation Feedback
3
