TYPICAL FLYBACK REGULATOR APPLICATIONS
Figure 24 Figure 25 Figure 26 Figure 27 Figure 28 show six typical flyback applications, varying from single
output to triple output. Each drawing contains the part number(s) and manufacturer(s) for every component

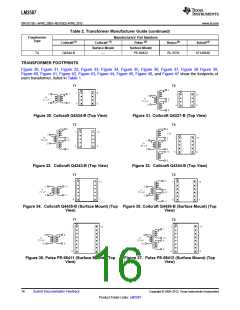

except the transformer. For the transformer part numbers and manufacturers names, see the table in
TRANSFORMER SELECTION (T). For applications with different output voltages—requiring the LM2587-
ADJ—or different output configurations that do not match the standard configurations, refer to the Switchers
Made Simple software.
Figure 24. Single-Output Flyback Regulator
