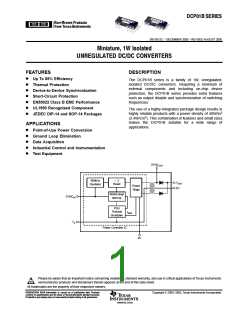

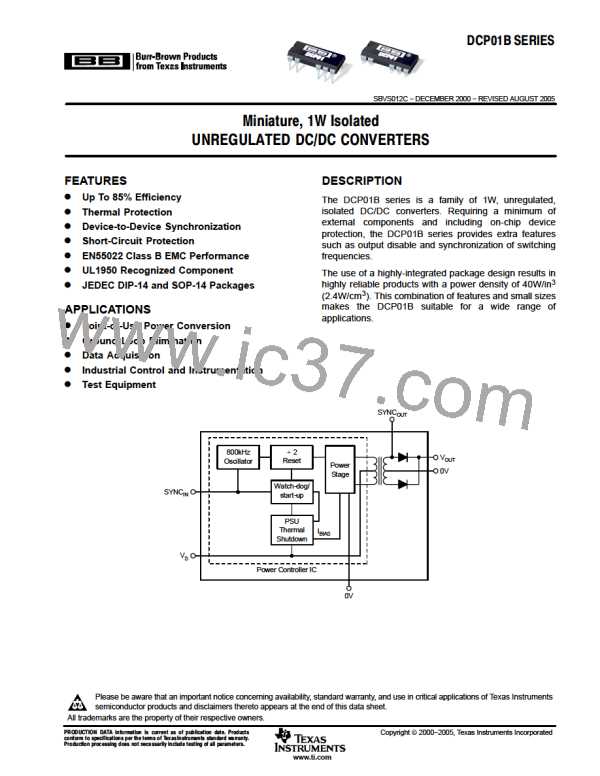

DCP01B SERIES
SBVS012C − DECEMBER 2000 − REVISED AUGUST 2005
Miniature, 1W Isolated
UNREGULATED DC/DC CONVERTERS
FEATURES
DESCRIPTION
D
D
D
D
D
D
D
Up To 85% Efficiency
The DCP01B series is a family of 1W, unregulated,
isolated DC/DC converters. Requiring a minimum of
external components and including on-chip device
protection, the DCP01B series provides extra features
such as output disable and synchronization of switching
frequencies.
Thermal Protection
Device-to-Device Synchronization
Short-Circuit Protection
EN55022 Class B EMC Performance
UL1950 Recognized Component
JEDEC DIP-14 and SOP-14 Packages
The use of a highly-integrated package design results in
highly reliable products with a power density of 40W/in3
(2.4W/cm3). This combination of features and small sizes
makes the DCP01B suitable for a wide range of
applications.
APPLICATIONS
D
D
D
D
D
Point-of-Use Power Conversion
Ground Loop Elimination
Data Acquisition
Industrial Control and Instrumentation
Test Equipment
SYNCOUT
÷
2
800kHz
Oscillator
VOUT
Reset
Power
Stage
0V
Watchdog/
startup
SYNCIN
PSU
Thermal
Shutdown
IBIAS
VS
Power Controller IC
0V
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date. Products
conform to specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all parameters.
Copyright 2000−2005, Texas Instruments Incorporated
www.ti.com
