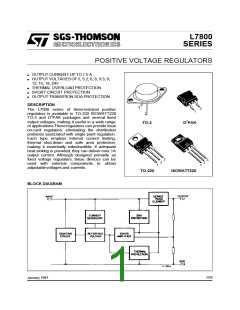

L7800
SERIES
POSITIVE VOLTAGE REGULATORS
s
s
s
s
s
OUTPUT CURRENT UP TO 1.5 A
OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9;
12; 15; 18; 24V
THERMAL OVERLOAD PROTECTION
SHORT CIRCUIT PROTECTION
OUTPUT TRANSITION SOA PROTECTION
DESCRIPTION
The L7800 series of three-terminal positive
regulators is available in TO-220 ISOWATT220
TO-3 and D
2
PAK packages and several fixed
output voltages, making it useful in a wide range
of applications.These regulators can provide local
on-card regulation, eliminating the distribution
problems associated with single point regulation.
Each type employs internal current limiting,
thermal shut-down and safe area protection,
making it essentially indestructible. If adequate
heat sinking is provided, they can deliver over 1A
output current. Although designed primarily as
fixed voltage regulators, these devices can be
used with external components to obtain
adjustable voltages and currents.
1
2
TO-3
1
3
D
2
PAK
3
1
2
1
2
3
TO-220
ISOWATT220
BLOCK DIAGRAM
January 1997
1/25
