Preliminary
Preliminary
SPA-1218 1950 MHz 1 Watt Power Amp.
Part Number Ordering Information
Caution: ESD sensitive
Part Number
Devices Per Reel
Reel Size
Appropriate precautions in handling, packaging and
testing devices must be observed.
SPA-1218
500
7"

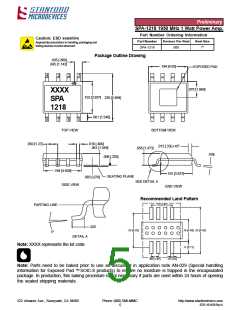

Package Outline Drawing
.035 [.889]
.045 [1.143]
.194 [4.93]
EXPOSED PAD
1
4
8
3
2
.078 [1.969]
XXXX
SPA
.155 [3.937]
.236 [5.994]
1218
.061 [1.549]
7
6
5
TOP VIEW
BOTTOM VIEW
.050 [1.27]
.016 [.406]
.061 [1.549]
.013 [.33] x 45°
.058 [1.473]
.0
0
8
.008 [.203]
.194 [4.928]
.155 [3.937]
END VIEW
SEATING PLANE
.003 [.076]
SEE DETAIL A
SIDE VIEW
Recommended Land Pattern
.15 [3.81]
PARTING LINE
.025
.24 [6.22]
.16 [4.02] .33 [8.42]
5°
DETAIL A
Note: XXXX represents the lot code
.11 [2.71]
.02 [.60]
.05 [1.27]
Note: Parts need to be baked prior to use as discussed in application note AN-029 (Special handling
information for Exposed Pad TM SOIC-8 products) to ensure no moisture is trapped in the encapsulated
package. In production, this baking procedure is not necessary if parts are used within 24 hours of opening
the sealed shipping materials.
522 Almanor Ave., Sunnyvale, CA 94085
Phone: (800) SMI-MMIC
5
http://www.stanfordmicro.com
EDS-101428 Rev A
STANFORD [ STANFORD MICRODEVICES ]
