High-Performance Single-Chip 10/100 Ethernet Controller with HP Auto-MDIX and Industrial Temperature Support
Datasheet
5.3.1
ID_REV—Chip ID and Revision
Offset:
50h
Size:
32 bits
This register contains the ID and Revision fields for this design.
BITS
31-16
15-0
DESCRIPTION
Chip ID. This read-only field identifies this design
Chip Revision
TYPE
RO
DEFAULT
118Ah
RO
0000h
5.3.2
IRQ_CFG—Interrupt Configuration Register
Offset:
54h
Size:
32 bits
This register configures and indicates the state of the IRQ signal.
BITS
DESCRIPTION
TYPE
DEFAULT
31:24
Interrupt Deassertion Interval (INT_DEAS). This field determines the
Interrupt Request Deassertion Interval in multiples of 10 microseconds.
R/W
0
Setting this field to zero causes the device to disable the INT_DEAS
Interval, reset the interval counter, and issue any pending interrupts. If a
new, non-zero value is written to this field, any subsequent interrupts will
obey the new setting.
Note:
This field does not apply to the PME interrupt.
23-15
14
Reserved
RO
SC
-
Interrupt Deassertion Interval Clear (INT_DEAS_CLR). Writing a one
to this register clears the de-assertion counter in the IRQ Controller, thus
causing a new de-assertion interval to begin (regardless of whether or
not the IRQ Controller is currently in an active de-assertion interval).
0
13
12
Interrupt Deassertion Status (INT_DEAS_STS). When set, this bit
indicates that interrupts are currently in a deassertion interval, and will
not be delivered to the IRQ pin. When this bit is clear, interrupts are not
currently in a deassertion interval, and will be delivered to the IRQ pin.
SC
RO
0
0
Master Interrupt (IRQ_INT). This read-only bit indicates the state of the
internal IRQ line, regardless of the setting of the IRQ_EN bit, or the state
of the interrupt de-assertion function. When this bit is high, one of the
enabled interrupts is currently active.
11-9
8
Reserved
RO
-
IRQ Enable (IRQ_EN) – This bit controls the final interrupt output to the
IRQ pin. When clear, the IRQ output is disabled and permanently
deasserted. This bit has no effect on any internal interrupt status bits.
R/W
0
7-5
Reserved
RO
-

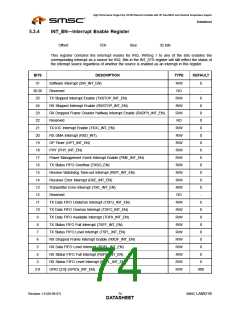

Revision 1.8 (06-06-07)
70
SMSC LAN9218i
DATASHEET
