ST7669V
9.1.68 ROMSET: Programmable rom setting(E5H)
Command
A0
0
/RD /WR
D7
0
D6
1
D5
1
D4
1
D3
0
D2
1
D1
0
D0
1
Hex
(E5h)
-
1
1
0
0
AutoLoadSet
Parameter
1
0
0
0
0
1
1
1
0
NOTE: “-“ Don’t care
Description
Restriction
Set the OTP writing timing. Value 0x0E is the best value for ST7669V.
Register
Status
Availability
Yes
Availability
Normal Mode On, Idle Mode Off, Sleep Out
Normal Mode On, Idle Mode On, Sleep Out
Partial Mode On, Idle Mode Off, Sleep Out
Partial Mode On, Idle Mode On, Sleep Out
Sleep In
Yes
Yes
Yes
Yes
Default
Status
Default Value D[7:0]
Power On Sequence
S/W Reset
0Fh
0Fh
0Fh
H/W Reset

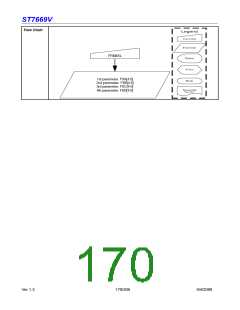

Flow Chart
Ver 1.3
166/208
6/4/2008
