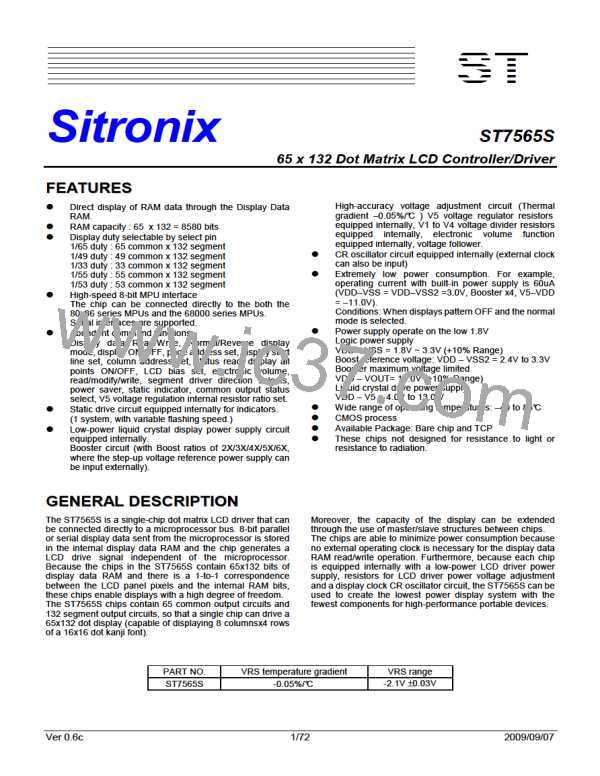

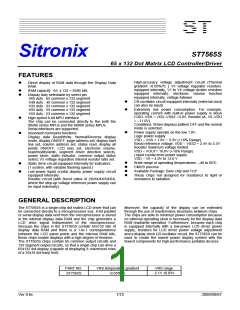

ST
Sitronix
ST7565S
65 x 132 Dot Matrix LCD Controller/Driver
FEATURES
High-accuracy voltage adjustment circuit (Thermal
gradient –0.05%/°C ) V5 voltage regulator resistors
equipped internally, V1 to V4 voltage divider resistors
equipped internally, electronic volume function
equipped internally, voltage follower.
CR oscillator circuit equipped internally (external clock
can also be input)
Extremely low power consumption. For example,
operating current with built-in power supply is 60uA
(VDD–VSS = VDD–VSS2 =3.0V, Booster x4, V5–VDD
= –11.0V).
Conditions: When displays pattern OFF and the normal
mode is selected.
Power supply operate on the low 1.8V
Logic power supply
VDD – VSS = 1.8V ~ 3.3V (+10% Range)
Boost reference voltage: VDD – VSS2 = 2.4V to 3.3V
Booster maximum voltage limited
VDD – VOUT= 16.0V (+10% Range)
Liquid crystal drive power supply:
ꢀ
Direct display of RAM data through the Display Data
RAM.
RAM capacity : 65 x 132 = 8580 bits
Display duty selectable by select pin
1/65 duty : 65 common x 132 segment
1/49 duty : 49 common x 132 segment
1/33 duty : 33 common x 132 segment
1/55 duty : 55 common x 132 segment
1/53 duty : 53 common x 132 segment
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
High-speed 8-bit MPU interface
The chip can be connected directly to the both the
80x86 series MPUs and the 68000 series MPUs.
Serial interfaces are supported.
ꢀ
Abundant command functions:
Display data Read/Write, Normal/Reverse display
mode, display ON/OFF, page address set, display start
line set, column address set, status read, display all
points ON/OFF, LCD bias set, electronic volume,
read/modify/write, segment driver direction selects,
power saver, static indicator, common output status
select, V5 voltage regulation internal resistor ratio set.
Static drive circuit equipped internally for indicators.
(1 system, with variable flashing speed.)
Low-power liquid crystal display power supply circuit
equipped internally.
VDD – V5 = 4.0V to 13.0 V
Wide range of operating temperatures: –40 to 85°C
CMOS process
Available Package: Bare chip and TCP
These chips not designed for resistance to light or
resistance to radiation.
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Booster circuit (with Boost ratios of 2X/3X/4X/5X/6X,
where the step-up voltage reference power supply can
be input externally).
GENERAL DESCRIPTION
The ST7565S is a single-chip dot matrix LCD driver that can
be connected directly to a microprocessor bus. 8-bit parallel
or serial display data sent from the microprocessor is stored
in the internal display data RAM and the chip generates a
LCD drive signal independent of the microprocessor.
Because the chips in the ST7565S contain 65x132 bits of
display data RAM and there is a 1-to-1 correspondence
between the LCD panel pixels and the internal RAM bits,
these chips enable displays with a high degree of freedom.
The ST7565S chips contain 65 common output circuits and
132 segment output circuits, so that a single chip can drive a
65x132 dot display (capable of displaying 8 columnsx4 rows
of a 16x16 dot kanji font).
Moreover, the capacity of the display can be extended
through the use of master/slave structures between chips.
The chips are able to minimize power consumption because
no external operating clock is necessary for the display data
RAM read/write operation. Furthermore, because each chip
is equipped internally with a low-power LCD driver power
supply, resistors for LCD driver power voltage adjustment
and a display clock CR oscillator circuit, the ST7565S can be
used to create the lowest power display system with the
fewest components for high-performance portable devices.
PART NO.
ST7565S
VRS temperature gradient
VRS range
-2.1V ±0.03V
-0.05%/°C
1/72
Ver 0.6c
2009/09/07
