M40S-072200AR0, M40E-072200RR0 | M4000 Standard
MULTIPLE LIGHT BEAM SAFETY DEVICES

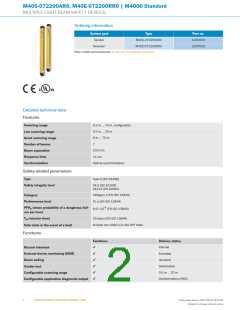

Ordering information
A
B
C
D
E
F
System part
Sender
Type
Part no.
1200009
1200026
M40S-072200AR0
M40E-072200RR0
Receiver
Other models and accessories www.sick.com/M4000_Standard
Detailed technical data
Features
0.5 m ... 70 m, configurable
0.5 m ... 20 m
9 m ... 70 m
7
Scanning range
H
I
Low scanning range
Great scanning range
Number of beams
Beam separation
Response time
220 mm
11 ms
J
Optical synchronisation
Synchronization
Safety-related parameters
K
L
Type 4 (IEC 61496)
Type
SIL3 (IEC 61508)
SILCL3 (EN 62061)
Safety integrity level
Category 4 (EN ISO 13849)
PL e (EN ISO 13849)
Category
Performance level
M
N
O
P
Q
R
S
T
6.6 x 10-9 (EN ISO 13849)
PFHD (mean probability of a dangerous fail-
ure per hour)
20 years (EN ISO 13849)
TM (mission time)
At least one OSSD is in the OFF state.
Safe state in the event of a fault
Functions
Functions
Delivery status
Internal
✔
✔
✔
✔
✔
✔
Restart interlock
Activated
External device monitoring (EDM)
Beam coding
Uncoded
Deactivated
0.5 m ... 20 m
Contamination (OWS)
Sender test
Configurable scanning range
Configurable application diagnostic output
2
OPTO-ELECTRONIC PROTECTIVE DEVICES | SICK
Online data sheet | 2017-08-24 18:11:25
Subject to change without notice
