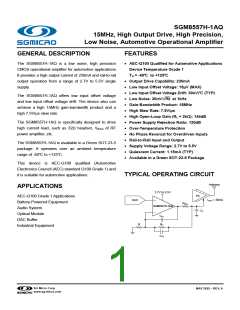

15MHz, High Output Drive, High Precision,
Low Noise, Automotive Operational Amplifier
SGM8557H-1AQ
PACKAGE/ORDERING INFORMATION
SPECIFIED
PACKAGE
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION
MODEL
TEMPERATURE
RANGE
DESCRIPTION
-40℃ to +125℃
SGM8557H-1AQ
SOT-23-5
SGM8557H-1AQN5G/TR
SWJXX
Tape and Reel, 3000
MARKING INFORMATION
NOTE: XX = Date Code.
YYY X X
Date Code - Week
Date Code - Year
Serial Number
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
ABSOLUTE MAXIMUM RATINGS
Failureto observe proper handlingand installation procedures
can cause damage. ESD damage can range from subtle
performance degradation tocomplete device failure. Precision
integrated circuits may be more susceptible to damage
because even small parametric changes could cause the
device not to meet the published specifications.
Supply Voltage, +VS to -VS.................................................6V
All Other Pins.............................. (-VS) - 0.3V to (+VS) + 0.3V
Junction Temperature .................................................+150℃
Storage Temperature Range.........................-65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
DISCLAIMER
SG Micro Corp reserves the right to make any change in
HBM.............................................................................7000V
CDM ............................................................................1000V
circuit design, or specifications without prior notice.
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range .....................-40℃ to +125℃
Operating Supply Voltage Range........................2.7V to 5.5V
PIN CONFIGURATION
(TOP VIEW)
OVERSTRESS CAUTION
Stresses beyond those listed in Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to
absolute maximum rating conditions for extended periods
may affect reliability. Functional operation of the device at any
conditions beyond those indicated in the Recommended
Operating Conditions section is not implied.
OUT
-VS
1
2
5
4
+VS
-IN
_
+
+IN
3
ESD SENSITIVITY CAUTION
SOT-23-5
This integrated circuit can be damaged if ESD protections are
not considered carefully. SGMICRO recommends that all
integrated circuits be handled with appropriate precautions.
SG Micro Corp
www.sg-micro.com
MAY 2022
