LC786960E
Oscillator
Example circuit for Oscillator
LC786960
XV
DD
2
X16IN
Rd2
C2
X16OUT
XV
2
SS
C2
XV 1
DD
XIN XOUT XV
Rd1
1
SS
C1
C1
(1) XIN/XOUT: 12.0000MHz
For System Main clock, USB control
Recommended Oscillator
Nihon Dempa Kogyo Co., Ltd.
Type
Recommended value
Rd1 = 0, C1 = 4pF
Rd1 = 0, C1 = 4pF
NX5032GA
NX8045GB
(2) X16IN/X16OUT: 16.9344MHz
For CD control, Audio control
Recommended Oscillator
Murata Manufacturing Co., Ltd.
Type
Recommended value
Rd2 = 0, C2 = open
Rd2 = 0, C2 = open
Rd2 = 0, C2 = open
CSTCE16M9V53-R0
CSTCW16M9X51008-R0
CSTLS16M9X53-B0
Nihon Dempa Kogyo Co., Ltd.
Type
Recommended value
AT51-CD2
Rd2 = 0, C2 = 8pF
Notes
Because the characteristics of oscillator could be changed according to the circuit board, ask evaluation with the
individual original circuit board to the oscillator maker.
The accuracy of 12MHz oscillator (XIN/XOUT) must be in ±500ppm when this oscillator clock is used for USB
Host function.

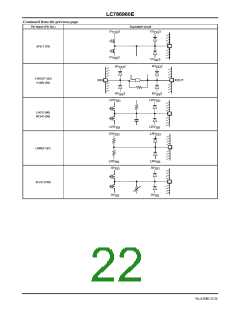

Concerning about internal circuit for XIN/XOUT and X16IN/X16OUT, refer to the “Analog Pin Internal Equivalent
Circuits” section.
No.A2080-18/24
