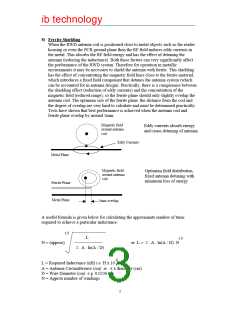

8) Ferrite Shielding
When the RWD antenna coil is positioned close to metal objects such as the reader
housing or even the PCB ground plane then the RF field induces eddy currents in
the metal. This absorbs the RF field energy and has the effect of detuning the
antenna (reducing the inductance). Both these factors can very significantly affect
the performance of the RWD system. Therefore for operation in metallic
environments it may be necessary to shield the antenna with ferrite. This shielding
has the effect of concentrating the magnetic field lines close to the ferrite material,
which introduces a fixed field component that detunes the antenna system (which
can be accounted for in antenna design). Practically, there is a compromise between
the shielding effect (reduction of eddy currents) and the concentration of the
magnetic field (reduced range), so the ferrite plane should only slightly overlap the
antenna coil. The optimum size of the ferrite plane, the distance from the coil and
the degree of overlap are very hard to calculate and must be determined practically.
Tests have shown that best performance is achieved when the antenna coil and
ferrite plane overlap by around 5mm.
Magnetic field
around antenna
coil
Eddy Currents
Eddy currents absorb energy
and cause detuning of antenna
Metal Plane
Magnetic field
around antenna
coil
Ferrite Plane
Optimum field distribution,
fixed antenna detuning with
minimum loss of energy
Metal Plane
5mm overlap
A useful formula is given below for calculating the approximate number of turns
required to achieve a particular inductance.
1.9
L
N = (approx)
2 . A . ln(A / D)
-9
1.9
or L = 2 . A . ln(A / D). N
L = Required Inductance (nH) i.e H x 10
A = Antenna Circumference (cm) ie.
π
x diameter (cm)
D = Wire Diameter (cm) e.g 0.0236 cm
N = Approx number of windings
3
