RTL8169S-32/RTL8169S-64
Datasheet

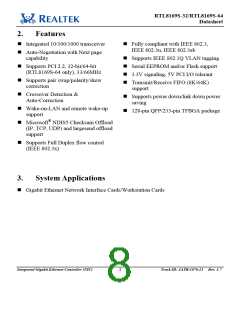

2. Features
ꢀ Integrated 10/100/1000 transceiver
ꢀ Fully compliant with IEEE 802.3,
IEEE 802.3u, IEEE 802.3ab
ꢀ Auto-Negotiation with Next page
capability
ꢀ Supports IEEE 802.1Q VLAN tagging
ꢀ Serial EEPROM and/or Flash support
ꢀ 3.3V signaling, 5V PCI I/O tolerant

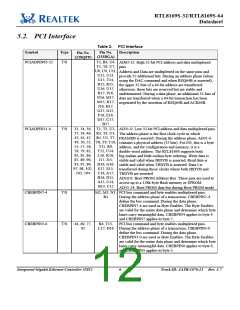

ꢀ Supports PCI 2.2, 32-bit/64-bit
(RTL8169S-64 only), 33/66MHz
ꢀ Supports pair swap/polarity/skew
ꢀ Transmit/Receive FIFO (8K/64K)
correction
support
ꢀ Crossover Detection &
ꢀ Supports power down/link down power
Auto-Correction
saving
ꢀ Wake-on-LAN and remote wake-up

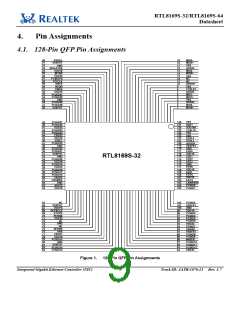

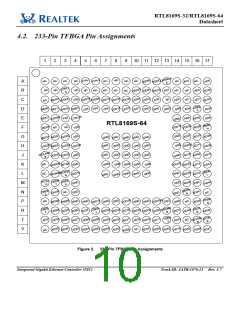

ꢀ 128-pin QFP/233-pin TFBGA package
support
ꢀ Microsoft® NDIS5 Checksum Offload
(IP, TCP, UDP) and largesend offload
support
ꢀ Supports Full Duplex flow control
(IEEE 802.3x)
3. System Applications
ꢀ Gigabit Ethernet Network Interface Cards/Workstation Cards
Integrated Gigabit Ethernet Controller (NIC)
