TEST FEATURES DESCRIPTION
The TEMAP contains test features for both production testing and board testing.
Simultaneously asserting the CSB, RDB and WRB inputs causes all output pins
and the data bus to be held in a high-impedance state. This test feature may be
used for board testing.
Test mode registers are used to apply test vectors during production testing of
the TEMAP. Test mode registers (as opposed to normal mode registers) are
selected when TRS (A[13]) is high.

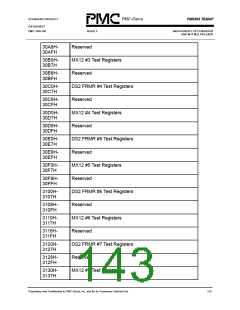

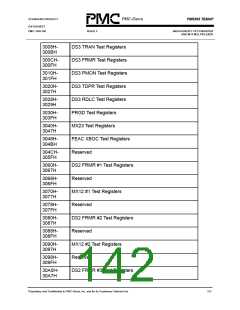

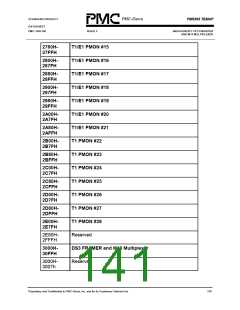

Test Mode Register Memory Map
Address
Register
0000H-
Normal Mode Registers
1FFFH
2000H
Master Test Register
2080H-
T1/E1 PMON #1
20FFH
2090H-
2093H
2094H-
2097H
2098H-
20B7H
RJAT Test Registers
TJAT Test Registers
Reserved
20B8H-
20BFH
20C0H-
20CFH
PMON Test Registers
Reserved
20D0H-
20D7H
20D8H-
20DFH
PRBS Test Registers
Reserved
20E0H-
20E3H
T1 ALMI Test Registers (T1 mode)
