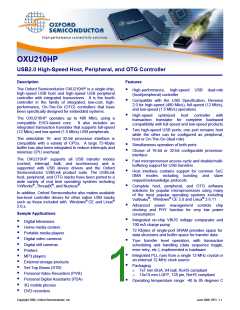

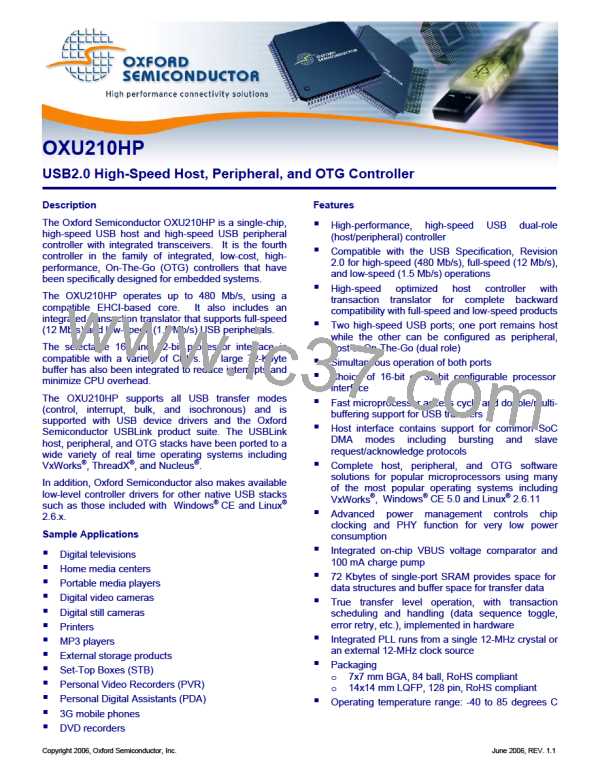

OXU210HP
USB2.0 High-Speed Host, Peripheral, and OTG Controller
Description
The Oxford Semiconductor OXU210HP is a single-chip,
high-speed USB host and high-speed USB peripheral
controller with integrated transceivers. It is the fourth
controller in the family of integrated, low-cost, high-
performance, On-The-Go (OTG) controllers that have
been specifically designed for embedded systems.
The OXU210HP operates up to 480 Mb/s, using a
compatible EHCI-based core. It also includes an
integrated transaction translator that supports full-speed
(12 Mb/s) and low-speed (1.5 Mb/s) USB peripherals.
The selectable 16- and 32-bit processor interface is
compatible with a variety of CPUs. A large 72-Kbyte
buffer has also been integrated to reduce interrupts and
minimize CPU overhead.
The OXU210HP supports all USB transfer modes
(control, interrupt, bulk, and isochronous) and is
supported with USB device drivers and the Oxford
Semiconductor USBLink product suite. The USBLink
host, peripheral, and OTG stacks have been ported to a
wide variety of real time operating systems including
VxWorks
®
, ThreadX
®
, and Nucleus
®
.
In addition, Oxford Semiconductor also makes available
low-level controller drivers for other native USB stacks
such as those included with Windows
®
CE and Linux
®
2.6.x.
Sample Applications
Digital televisions
Home media centers
Portable media players
Digital video cameras
Digital still cameras
Printers
MP3 players
External storage products
Set-Top Boxes (STB)
Personal Video Recorders (PVR)
Personal Digital Assistants (PDA)
3G mobile phones
DVD recorders
Copyright 2006, Oxford Semiconductor, Inc.
Features
High-performance, high-speed USB dual-role
(host/peripheral) controller
Compatible with the USB Specification, Revision
2.0 for high-speed (480 Mb/s), full-speed (12 Mb/s),
and low-speed (1.5 Mb/s) operations
High-speed optimized host controller with
transaction translator for complete backward
compatibility with full-speed and low-speed products
Two high-speed USB ports; one port remains host
while the other can be configured as peripheral,
host or On-The-Go (dual role)
Simultaneous operation of both ports
Choice of 16-bit or 32-bit configurable processor
interface
Fast microprocessor access cycle and double/multi-
buffering support for USB transfers
Host interface contains support for common SoC
DMA modes including bursting and slave
request/acknowledge protocols
Complete host, peripheral, and OTG software
solutions for popular microprocessors using many
of the most popular operating systems including
VxWorks
®
, Windows
®
CE 5.0 and Linux
®
2.6.11
Advanced power management controls chip
clocking and PHY function for very low power
consumption
Integrated on-chip VBUS voltage comparator and
100 mA charge pump
72 Kbytes of single-port SRAM provides space for
data structures and buffer space for transfer data
True transfer level operation, with transaction
scheduling and handling (data sequence toggle,
error retry, etc.), implemented in hardware
Integrated PLL runs from a single 12-MHz crystal or
an external 12-MHz clock source
Packaging
o
7x7 mm BGA, 84 ball, RoHS compliant
o
14x14 mm LQFP, 128 pin, RoHS compliant
Operating temperature range: -40 to 85 degrees C

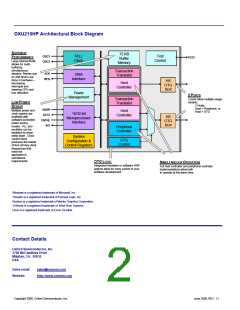

June 2006, REV. 1.1
