SEMKO (Certificate No. 9732043; EN60065)
Model Coil ratings
5 to 28 VDC (@ 40°C)
Contact ratings
5 A/40 A, 250 VAC
3 A/100 A, 250 VAC
Number of test operations
10,000
G5PA-1
TÜV (Certificate No. R9650435, IEC255/VDE0435)
Model Coil ratings
5 to 24 VDC
Contact ratings
Number of test operations
100,000
G5PA-1
5 A, 250 VAC
(cos φ = 1)
5 A, 30 VDC
(L/R: 0: ms)
Engineering Data
■ Maximum Switching Power
■ Ambient Temperatures vs.
Maximum Coil Voltage
150
G5PA-1
DC resist
ance load
G5PA-1
AC resist
ance load
Switching voltage (V)
Ambient temperature (°C)
Note: The maximum coil voltage refers to the maximum value in a
varying range of operating power voltage, not continuous
voltage.
Dimensions
Note: All units are in millimeters unless otherwise indicated.
10 max.
(9.85)*
Mounting Holes
(Bottom View)
Tolerance: 0.1 mm.
Terminal Arrangement/
Internal Connections
(Bottom View)
24 max.
(23.85)*
Two, 1.0-dia. holes
Two, 1.3-dia. holes
25 max.
(24.85)*
7.5
16.5
20
No coil polarity
0.42
1
1
0.4 0.4
*Average value

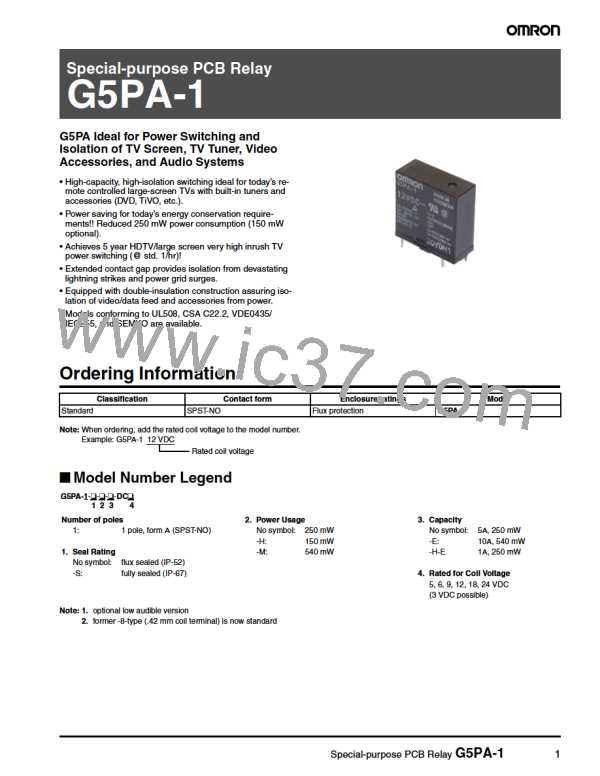

Special-purpose PCB Relay G5PA-1
3
