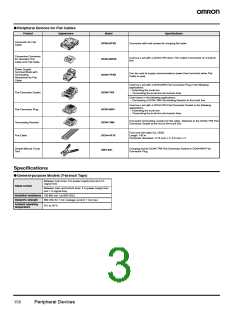

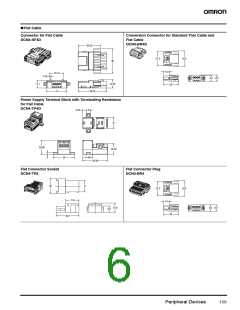

● Peripheral Devices for Flat Cables
Product
Appearance
Model
Specifications
Connector for Flat
Cable
DCN4-SF4D
Connector with lock screws for crimping flat cable
Conversion Connector
for Standard Thin
Cable and Flat Cable
Used as a set with a DCN4-TR4 when Thin Cable is branched on a branch
line.
DCN4-BR4D
DCN4-TP4D
Power Supply
Terminal Block with
Terminating
Resistance for Flat
Cable
Can be used to supply communications power from terminals when Flat
Cable is used.
Used as a set with a DCN4-BR4 Flat Connector Plug in the following
applications.
• Extending the trunk line
• T-branching the trunk line into branch lines
Flat Connector Socket
DCN4-TR4
Used alone in the following applications.
• Connecting a DCN4-TM4 Terminating Resistor to the trunk line
Used as a set with a DCN4-TR4 Flat Connector Socket in the following
applications.
• Extending the trunk line
Flat Connector Plug
Terminating Resistor
Flat Cable
DCN4-BR4
DCN4-TM4
DCA4-4F10
• T-branching the trunk line into branch lines
Connector terminating resistor for flat cable. Attached to the DCN4-TR4 Flat
Connector Socket at the end of the trunk line.
Four-core flat cable (UL 2555)
Length: 100 m
Conductor diameters: 0.75 mm2 x 2, 0.5 mm2 x 2
Simple Manual Crimp
Tool
Crimping tool for DCN4-TR4 Flat Connector Socket or DCN4-BR4 Flat
Connector Plug.
DWT-A01
Specifications

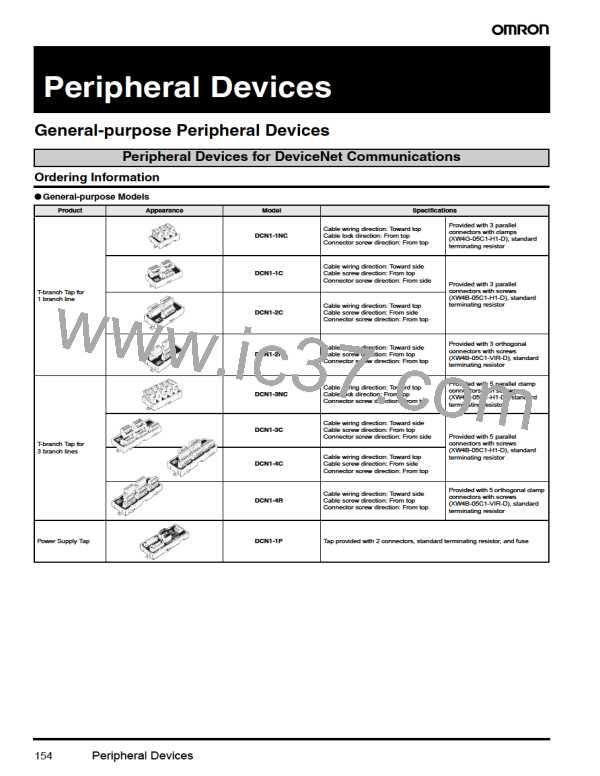

● General-purpose Models (T-branch Taps)
Between main lines: 8 A (power supply line) and 2 A
(signal line)
Rated current
Between main and branch lines: 3 A (power supply line)
and 1 A (signal line)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength
500 VAC for 1 min, leakage current: 1 mA max.
Ambient operating
temperature
0°C to 55°C
156
Peripheral Devices
