LPC546xx
NXP Semiconductors
32-bit ARM Cortex-M4 microcontroller

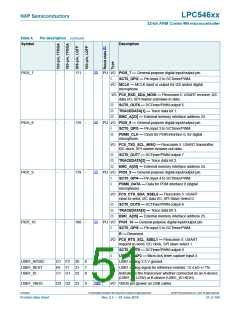

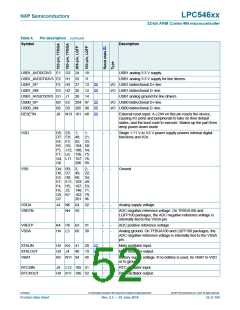

Table 4.
Symbol
Pin description …continued
Description
[2]
[2]
[2]
PIO4_31
PIO5_0
PIO5_1
-
-
-
-
-
-
114
122
126
-
-
-
PU I/O PIO4_31 — General-purpose digital input/output pin.
I
ENET_RX_CLK — Ethernet Receive Clock (MII interface) or
Ethernet Reference Clock (RMII interface).
I/O SD_D[6] — SD/MMC data 6.
CT3_MAT1 — Match output 1 from Timer 3.
O
I/O FC4_SCK — Flexcomm 4: USART or SPI clock.
R — Reserved.
I/O EMC_D[26] — External Memory interface data [26].
PU I/O PIO5_0 — General-purpose digital input/output pin.
I
ENET_RX_DV — Ethernet receive data valid.
I/O SD_D[7] — SD/MMC data 7.
CT3_MAT2 — Match output 2 from Timer 3.
O
I/O FC4_RXD_SDA_MOSI — Flexcomm 4: USART receiver, I2C
data I/O, SPI master-out/slave-in data.
R — Reserved.
I/O EMC_D[27] — External Memory interface data [27].
PU I/O PIO5_1 — General-purpose digital input/output pin.
I
ENET_CRS — Ethernet Carrier Sense (MII interface) or
Ethernet
Carrier Sense/Data Valid (RMII interface).
O
O
SD_VOLT[0] — SD/MMC card regulator voltage control [0].
CT3_MAT3 — Match output 3 from Timer 3.
I/O FC4_TXD_SCL_MISO — Flexcomm 4: USART transmitter,
I2C clock, SPI master-in/slave-out data.
R — Reserved.
I/O EMC_D[28] — External Memory interface data [28].
PU I/O PIO5_2 — General-purpose digital input/output pin.
[2]
PIO5_2
-
-
202
-
I
ENET_COL — Ethernet Collision detect (MII interface).
SD_VOLT[1] — SD/MMC card regulator voltage control [1].
CT3_CAP0 — Capture input 0 to Timer 3.
O
I
I/O FC4_CTS_SDA_SSEL0 — Flexcomm 4: USART
clear-to-send, I2C data I/O, SPI Slave Select 0.
R — Reserved.

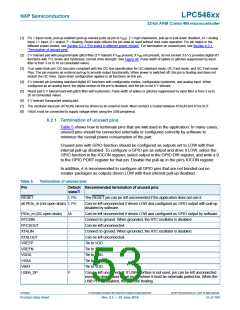

I/O EMC_D[29] — External Memory interface data [29].
