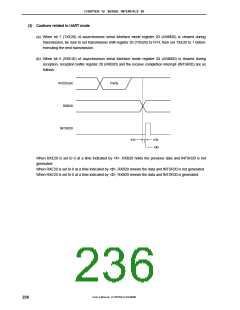

CHAPTER 12 SERIAL INTERFACE 20
(b) Parity types and operation
The parity bit is used to detect a bit error in the communication data. Normally, the same kind of parity
bit is used on the transmitting side and the receiving side. With even parity and odd parity, a one-bit
(odd number) error can be detected. With 0 parity and no parity, an error cannot be detected.
(i) Even parity
• At transmission
The parity bit is determined so that the number of bits with a value of “1” in the transmit data
including the parity bit may be even. The parity bit value should be as follows.
The number of bits with a value of “1” is an odd number in transmit data:
1
The number of bits with a value of “1” is an even number in transmit data: 0
• At reception
The number of bits with a value of “1” in the receive data including parity bit is counted, and if the
number is odd, a parity error occurs.
(ii) Odd parity
• At transmission
Conversely to the even parity, the parity bit is determined so that the number of bits with a value
of “1” in the transmit data including parity bit may be odd. The parity bit value should be as
follows.
The number of bits with a value of “1” is an odd number in transmit data:
0
The number of bits with a value of “1” is an even number in transmit data: 1
• At reception
The number of bits with a value of “1” in the receive data including parity bit is counted, and if the
number is even, a parity error occurs.
(iii) 0 parity
When transmitting, the parity bit is set to “0” irrespective of the transmit data.
At reception, a parity bit check is not performed. Therefore, a parity error does not occur,
irrespective of whether the parity bit is set to “0” or “1”.
(iv) No parity
A parity bit is not added to the transmit data. At reception, data is received assuming that there is
no parity bit. Since there is no parity bit, a parity error does not occur.
