High Voltage Ceramic Capacitors !Caution
Continued from the preceding page.
4. Load Reduction and Self-generated Heat During
Application of High-frequency and High-voltage
Due to the low self-heating characteristics of low-
dissipation capacitors, the allowable electric power of
these capacitors is generally much higher than that of B
characteristic capacitors. However, if the self-heating
temperature is 20°C under a high-frequency voltage
whose peak-to-peak value equals the capacitor's rated
voltage, the capacitor's power consumption may exceed
its allowable electric power.
We are offering free software, The Capacitor Selection
Tool: by Voltage Form, which will assist you in selecting a
suitable capacitor.
The software can be downloaded from Murata's Web site
(http://www.murata.com/products/design_support/mmcsv/
index.html).
By inputting capacitance values and applied voltage
waveform of the specific capacitor series, this software
will calculate the capacitor's power consumption and list
suitable capacitors.
Therefore, when using the DEA/DEC (SL Char.) /DEH
/DES series in a high-frequency and high-voltage circuit
with a frequency of 1kHz or higher, make sure that the
Vp-p values including the DC bias, do not exceed the
applied voltage value specified in Table 1. Also make
sure that the self-heating temperature (the difference
between the capacitor's surface temperature and the
capacitor's ambient temperature) at an ambient
temperature of 25°C does not exceed the value specified
in Table 1.
When the result of this software is different from the
measurement result of the self-heating temperature on
your side, please contact our sales representatives or
product engineers.
As shown in Fig. 2, the self-heating temperature
depends on the ambient temperature. Therefore, if you
are not able to set the ambient temperature to
approximately 25°C, please contact our sales
representatives or product engineers.
FAILURE TO FOLLOW THE ABOVE CAUTIONS (ITEMS 1
TO 4) MAY RESULT, WORST CASE, IN A SHORT CIRCUIT
AND CAUSE FUMING OR PARTIAL DISPERSION WHEN
THE PRODUCT IS USED.
<Table 1> Allowable Conditions at High frequency
<Fig. 1> Relationship Between Applied Voltage and
Self-heating Temperature (Allowable Self-heating
Allowable Conditions
DC
Rated
Voltage
Capacitor's
Ambient
Temp. *2
at High-frequency *3
Temp. at 25°C Ambient Temp.)
Temp.
Char.
Series
Applied
Self-heating Temp.
DEH Series R Char. (Rated Voltage: DC1kV to 3.15kV)
Voltage (Max.) (25°C Ambient Temp.) *1
25
C
500V
1kV
500Vp-p
800Vp-p
20°C Max.
20°C Max.
5°C Max.
20°C Max.
5°C Max.
20°C Max.
5°C Max.
20
15
10
5
1000Vp-p
1400Vp-p
2000Vp-p
1600Vp-p
3150Vp-p
1000Vp-p
2000Vp-p
DEH
R
2kV
11
3.15kV
Rated Voltage: 1kV 2kV
3.15kV
-25 to +85°C
1kV
2kV
0
100
1000
10000
DEA
DEC
DES
SL
SL
D
5°C Max.
Applied Voltage (Vp-p)
3.15kV 3150Vp-p
6.3kV 6300Vp-p
5°C Max.
15°C Max.
5°C Max.
500V
500Vp-p
800Vp-p
1000Vp-p
DES Series D Char. (Rated Voltage: DC1kV)
25
1kV
20
15
10
5
*1 Fig. 1 shows the relationship between the applied voltage and the allowable self-
heating temperature regarding 1 to 3.15kV rated voltage of the DEH series R
characteristic and 1kV rated voltage of the DES series D characteristic.
*2 When the ambient temperature is 85 to 125°C, the applied voltage needs to be
further reduced. If the DEA/DEH/DES series needs to be used at an ambient
temperature of 85 to 125°C, please contact our sales representatives or product
engineers.
Rated Voltage: DC1kV

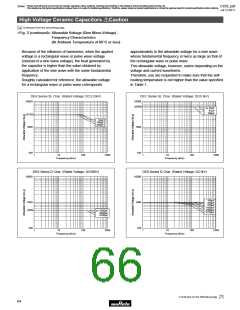

*3 Fig. 3 shows reference data on the allowable voltage - frequency characteristics
for a sine wave voltage.
0
100
1000
10000
Applied Voltage (Vp-p)
Continued on the following page.
