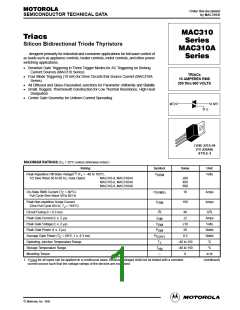

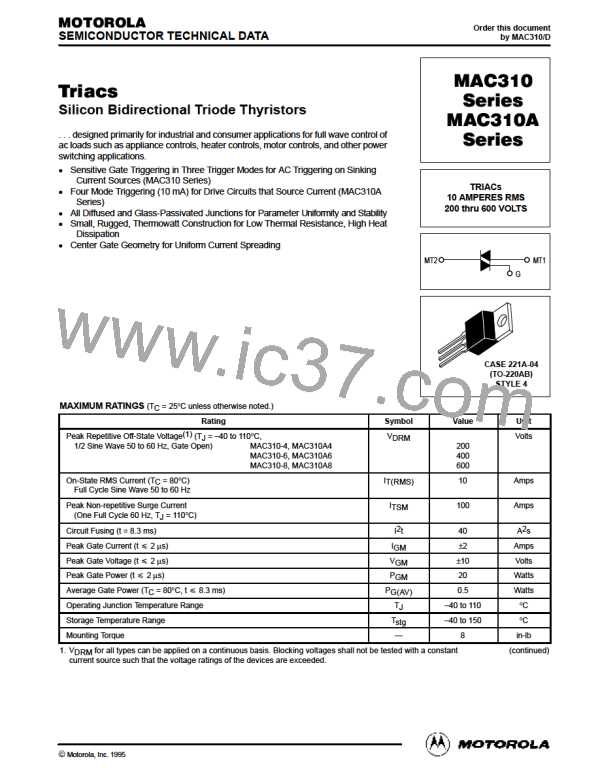

Order this document
by MAC310/D
SEMICONDUCTOR TECHNICAL DATA
Silicon Bidirectional Triode Thyristors
. . . designed primarily for industrial and consumer applications for full wave control of
ac loads such as appliance controls, heater controls, motor controls, and other power
switching applications.
Sensitive Gate Triggering in Three Trigger Modes for AC Triggering on Sinking
Current Sources (MAC310 Series)
TRIACs
10 AMPERES RMS
200 thru 600 VOLTS
Four Mode Triggering (10 mA) for Drive Circuits that Source Current (MAC310A
Series)
All Diffused and Glass-Passivated Junctions for Parameter Uniformity and Stability
Small, Rugged, Thermowatt Construction for Low Thermal Resistance, High Heat
Dissipation
Center Gate Geometry for Uniform Current Spreading
MT2
MT1
G
CASE 221A-04
(TO-220AB)
STYLE 4
MAXIMUM RATINGS (T = 25°C unless otherwise noted.)
C
Rating
Symbol
Value
Unit
(1)
Peak Repetitive Off-State Voltage (T = –40 to 110°C,
V
DRM
Volts
J
1/2 Sine Wave 50 to 60 Hz, Gate Open)
MAC310-4, MAC310A4
200
400
600
MAC310-6, MAC310A6
MAC310-8, MAC310A8
On-State RMS Current (T = 80°C)
Full Cycle Sine Wave 50 to 60 Hz
I
10
Amps
Amps
C
T(RMS)
Peak Non-repetitive Surge Current
I
100
TSM
(One Full Cycle 60 Hz, T = 110°C)
J
2
I t
2
A s
Circuit Fusing (t = 8.3 ms)
40
Peak Gate Current (t
Peak Gate Voltage (t
Peak Gate Power (t
2 µs)
2 µs)
2 µs)
I
±2
±10
Amps
Volts
GM
V
P
GM
GM
20
Watts
Watts
°C
Average Gate Power (T = 80°C, t
8.3 ms)
P
0.5
C
G(AV)
Operating Junction Temperature Range
Storage Temperature Range
Mounting Torque
T
J
–40 to 110
–40 to 150
8
T
°C
stg
in-lb
1. V
for all types can be applied on a continuous basis. Blocking voltages shall not be tested with a constant
(continued)
DRM
current source such that the voltage ratings of the devices are exceeded.
Motorola, Inc. 1995
