Mitsubishi microcomputers
M16C / 62 Group
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
Appendix Standard Serial I/O Mode (Flash Memory Version)

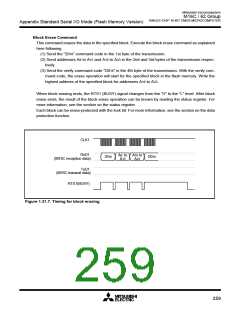

Block Erase Command
This command erases the data in the specified block. Execute the block erase command as explained
here following.
(1) Send the “2016” command code in the 1st byte of the transmission.
(2) Send addresses A8 to A15 and A16 to A23 in the 2nd and 3rd bytes of the transmission respec-
tively.
(3) Send the verify command code “D016” in the 4th byte of the transmission. With the verify com-
mand code, the erase operation will start for the specified block in the flash memory. Write the
highest address of the specified block for addresses A16 to A23.
When block erasing ends, the RTS1 (BUSY) signal changes from the “H” to the “L” level. After block
erase ends, the result of the block erase operation can be known by reading the status register. For
more information, see the section on the status register.
Each block can be erase-protected with the lock bit. For more information, see the section on the data
protection function.
CLK1
RxD1
(M16C reception data)
A8 to
A15
A16 to
A23
2016
D016
TxD1
(M16C transmit data)
RTS1(BUSY)
Figure 1.31.7. Timing for block erasing
259
