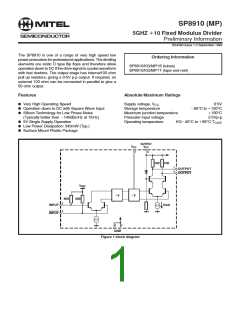

SP8910 (MP)
5GHZ 410 Fixed Modulus Divider
Preliminary Information
DS4360 Issue 1.3 September 1999
The SP8910 is one of a range of very high speed low
power prescalers for professional applications. The dividing
elements are static D type flip flops and therefore allow
operation down to DC if the drive signal is a pulse waveform
with fast risetime. The output stage has internal100 ohm
pull up resistors, giving a 0·5V p-p output. If required, an
external 100 ohm can be connected in parallel to give a
50 ohm output.
Ordering Information
SP8910/KG/MP1S (tubes)
SP8910/KG/MP1T (tape and reel)
Features
Absolute Maximum Ratings
G Very High Operating Speed
Supply voltage, V
Storage temperature
Maximum junction temperature
Prescaler input voltage
Operating temperature
6·5V
265°C to 1150°C
1150°C
CC
G Operation down to DC with Square Wave Input
G Silicon Technology for Low Phase Noise
(Typically better than 2140dBc/Hz at 1KHz)
G 5V Single Supply Operation
G Low Power Dissipation: 340mW (Typ.)
G Surface Mount Plastic Package
2·5Vp-p
KG240°C to 185°C TCASE
OUTPUT
V
CC
V
CC
1
8
100 100
7
6
OUTPUT
OUTPUT
V
REF
45
42
400
400
2
3
5mA
INPUT
INPUT
4
4
GND
Figure 1 block diagram
