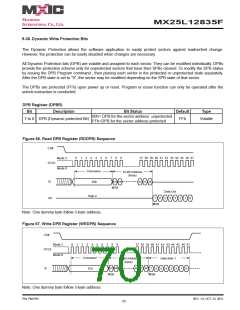

9-39. Program/Erase Suspend/Resume
The device allow the interruption of Sector-Erase, Block-Erase or Page-Program operations and conduct other
operations.
After issue suspend command, the system can determine if the device has entered the Erase-Suspended mode
through Bit2 (PSB) and Bit3 (ESB) of security register. (please refer to "Table 9. Security Register Definition")
The latency time of erase operation :
Suspend to suspend ready timing: 20us.
Resume to another suspend timing: 1ms.
Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care
when during SPI mode.
9-40. Erase Suspend
Erase suspend allow the interruption of all erase operations. After the device has entered Erase-Suspended mode,
the system can read any sector(s) or Block(s) except those being erased by the suspended erase operation.
Reading the sector or Block being erase suspended is invalid.
After erase suspend, WEL bit will be clear, only read related, resume and reset command can be accepted. (including:
03h, 0Bh, 3Bh, 6Bh, BBh, EBh, 5Ah, C0h, 06h, 04h, 2Bh, 9Fh, AFh, 05h, ABh, 90h, B1h, C1h, B0h, 30h, 66h, 99h,
00h, 35h, F5h, 15h, 2Dh, 27h, A7h, E2h, E0h, 16h)
If the system issues an Erase Suspend command after the sector erase operation has already begun, the device
will not enter Erase-Suspended mode until 20us time has elapsed.
Erase Suspend Bit (ESB) indicates the status of Erase Suspend operation. Users may use ESB to identify the state
of flash memory. After the flash memory is suspended by Erase Suspend command, ESB is set to "1". ESB is
cleared to "0" after erase operation resumes.
9-41. Program Suspend
Program suspend allows the interruption of all program operations. After the device has entered Program-
Suspended mode, the system can read any sector(s) or Block(s) except those being programmed by the suspended
program operation. Reading the sector or Block being program suspended is invalid.
After program suspend, WEL bit will be cleared, only read related, resume and reset command can be accepted.
(including: 03h, 0Bh, 3Bh, 6Bh, BBh, EBh, 5Ah, C0h, 06h, 04h, 2Bh, 9Fh, AFh, 05h, ABh, 90h, B1h, C1h, B0h, 30h,
66h, 99h, 00h, 35h, F5h, 15h, 2Dh, 27h, A7h, E2h, E0h, 16h)
Program Suspend Bit (PSB) indicates the status of Program Suspend operation. Users may use PSB to identify the
state of flash memory. After the flash memory is suspended by Program Suspend command, PSB is set to "1". PSB
is cleared to "0" after program operation resumes.
