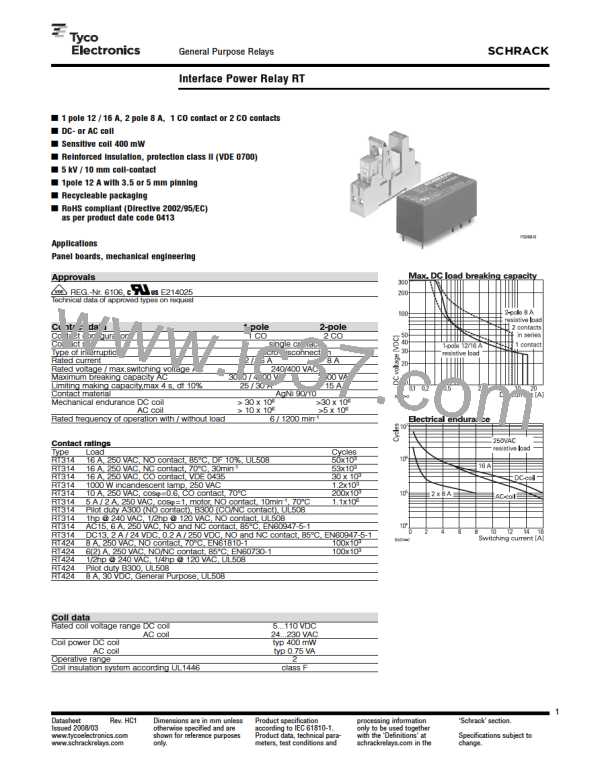

General Purpose Relays
SCHRACK
Interface Power Relay RT
I
I
I
I
I
I
I
I
1 pole 12 / 16 A, 2 pole 8 A, 1 CO contact or 2 CO contacts
DC- or AC coil
Sensitive coil 400 mW
Reinforced insulation, protection class II (VDE 0700)
5 kV / 10 mm coil-contact
1pole 12 A with 3.5 or 5 mm pinning
Recycleable packaging
RoHS compliant (Directive 2002/95/EC)
as per product date code 0413
F0269-B
Applications
Panel boards, mechanical engineering
Approvals
V
REG.-Nr.
of
6106,
Z
on request
E214025
Technical data approved types
Contact data
1-pole
2-pole
Contact configuration
1 CO
2 CO
Contact set
single contact
Type of interruption
micro disconnection
Rated current
12 / 16 A
8A
Rated voltage / max.switching voltage AC
240/400 VAC
Maximum breaking capacity AC
3000 / 4000 VA
2000 VA
Limiting making capacity,max 4 s, df 10%
25 / 30 A
15 A
Contact material
AgNi 90/10
Mechanical endurance DC coil
> 30 x 10
6
>30 x 10
6
6
AC coil
> 10 x 10
>5 x 10
6
-1
Rated frequency of operation with / without load
6 / 1200 min
Contact
Type
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT424
RT424
RT424
RT424
RT424
ratings
Load
Cycles
16 A, 250 VAC, NO contact, 85°C, DF 10%, UL508
50x10
3
-1
16 A, 250 VAC, NC contact, 70°C, 30min
53x10
3
16 A, 250 VAC, CO contact, VDE 0435
30 x 10
3
1000 W incandescent lamp, 250 VAC
1.2x10
3
10 A, 250 VAC, cosϕ=0.6, CO contact, 70°C
200x10
3
5 A / 2 A, 250 VAC, cosϕ=1, motor, NO contact, 10min
-1
, 70°C
1.1x10
6
Pilot duty A300 (NO contact), B300 (CO/NC contact), UL508
1hp @ 240 VAC, 1/2hp @ 120 VAC, NO contact, UL508
AC15, 6 A, 250 VAC, NO and NC contact, 85°C, EN60947-5-1
DC13, 2 A / 24 VDC, 0.2 A / 250 VDC, NO and NC contact, 85°C, EN60947-5-1
8 A, 250 VAC, NO contact, 70°C, EN61810-1
100x10
3
6(2) A, 250 VAC, NO/NC contact, 85°C; EN60730-1
100x10
3
1/2hp @ 240 VAC, 1/4hp @ 120 VAC, UL508
Pilot duty B300, UL508
8 A, 30 VDC, General Purpose, UL508
Coil data
Rated coil voltage range DC coil
AC coil
Coil power DC coil
AC coil
Operative range
Coil insulation system according UL1446
5...110 VDC
24...230 VAC
typ 400 mW
typ 0.75 VA
2
class F
1
Datasheet
Rev. HC1
Issued 2008/03
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
