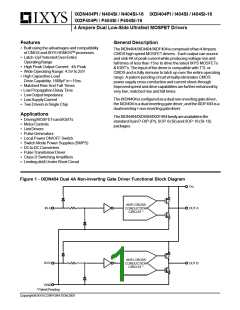

Pin Description
SYMBOL
FUNCTION
A Channel Input
DESCRIPTION
A Channel Input signal-TTL or CMOS compatible.
IN A
The system ground pin. Internally connected to all circuitry, this pin provides
ground reference for the entire chip. This pin should be connected to a low
noise analog ground plane for optimum performance.
GND
Ground
IN B
B Channel Input
B Channel Input signal-TTL or CMOS compatible.
B Channel Driver output. For application purposes, this pin is connected via
a resistor to a gate of a MOSFET/IGBT.
OUT B
B Channel Output
Positive power-supply voltage input. This pin provides power to the entire
chip. The range for this voltage is from 4.5V to 25V.
VCC
Supply Voltage
A Channel Driver output. For application purposes, this pin is connected via
a resistor to a gate of a MOSFET/IGBT.
OUT A
A Channel Output
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD procedures when
handling and assembling this component.
Note 1: Operating the device beyond parameters with listed “Absolute Maximum Ratings” may cause permanent
damage to the device. Typical values indicate conditions for which the device is intended to be functional, but do not
guarantee specific performance limits. The guaranteed specifications apply only for the test conditions listed.
Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
Figure 4 - Characteristics Test Diagram
Vcc
1
2
3
4
8
7
6
5
NC
NC
In A
Gnd
In B
Out A
Vcc
10uF
25V
Out B
Agilent 1147A
Current Probe
Agilent 1147A
Current Probe
1800 pF
1800 pF
4
