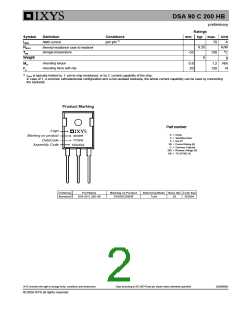

DSA 90 C 200 HB
preliminary
Ratings
Symbol
IRMS
Definition
Conditions
per pin 1)
min. typ. max. Unit
70
A
K/W
°C
RMS current
RthCH
0.25
6
thermal resistance case to heatsink
storage temperature
Tstg
-55
150
Weight
g
mounting torque
MD
0.8
20
1.2 Nm
mounting force with clip
F
120
N
C
1)
IRMS is typically limited by: 1. pin-to-chip resistance; or by 2. current capability of the chip.
In case of 1, a common cathode/anode configuration and a non-isolated backside, the whole current capability can be used by connecting
the backside.
Product Marking
Part number
Logo
D = Diode
Marking on product
DateCode
abcdef
YYWW
S = Schottky Diode
A = low VF
90 = Current Rating [A]
C = Common Cathode
200 = Reverse Voltage [V]
Assembly Code
XXXXXX
HB = TO-247AD (3)
Ordering
Standard
Part Name
DSA 90 C 200 HB
Marking on Product
Delivering Mode Base Qty Code Key
DSA90C200HB
Tube
30
502854
IXYS reserves the right to change limits, conditions and dimensions.
20080605b
Data according to IEC 60747and per diode unless otherwise specified
© 2008 IXYS all rights reserved
