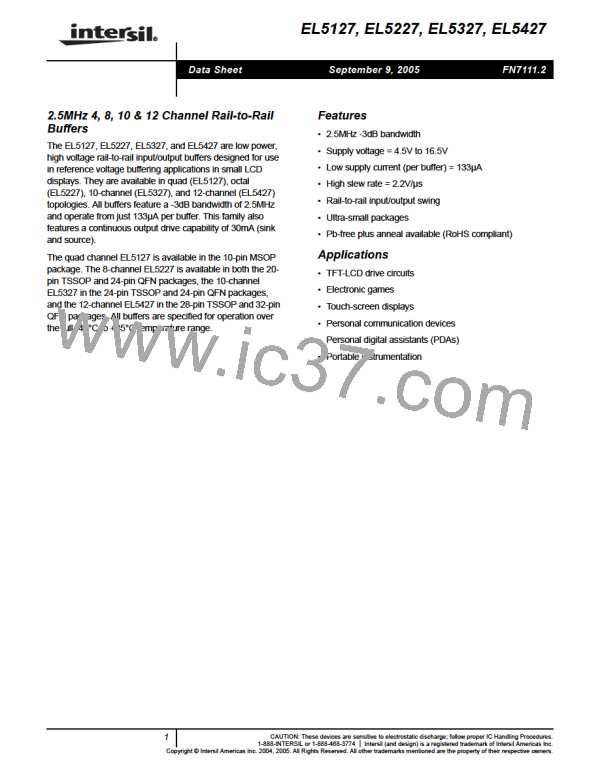

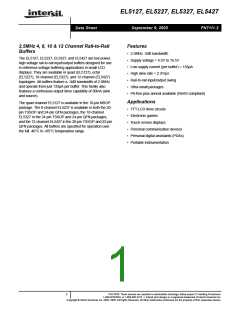

EL5127, EL5227, EL5327, EL5427
Data Sheet
September 9, 2005
FN7111.2
2.5MHz 4, 8, 10 & 12 Channel Rail-to-Rail
Buffers
The EL5127, EL5227, EL5327, and EL5427 are low power,
high voltage rail-to-rail input/output buffers designed for use
in reference voltage buffering applications in small LCD
displays. They are available in quad (EL5127), octal
(EL5227), 10-channel (EL5327), and 12-channel (EL5427)
topologies. All buffers feature a -3dB bandwidth of 2.5MHz
and operate from just 133µA per buffer. This family also
features a continuous output drive capability of 30mA (sink
and source).

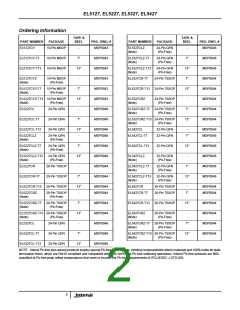

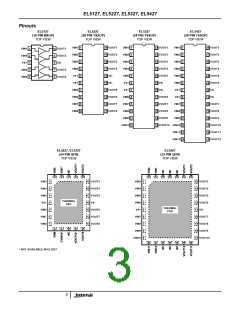

The quad channel EL5127 is available in the 10-pin MSOP
package. The 8-channel EL5227 is available in both the 20-
pin TSSOP and 24-pin QFN packages, the 10-channel
EL5327 in the 24-pin TSSOP and 24-pin QFN packages,
and the 12-channel EL5427 in the 28-pin TSSOP and 32-pin
QFN packages. All buffers are specified for operation over
the full -40°C to +85°C temperature range.

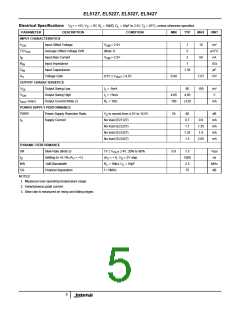

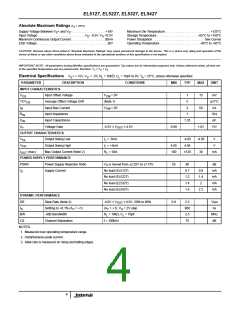

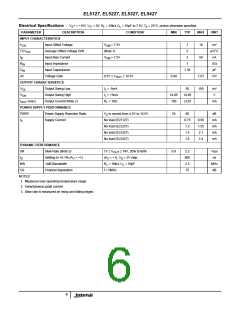

Features

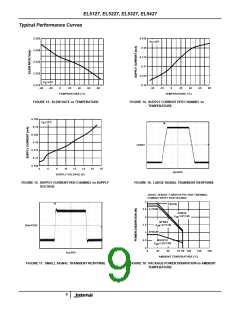

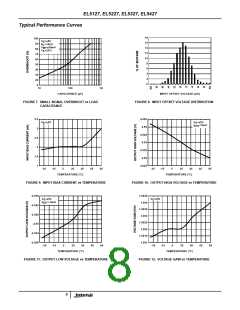

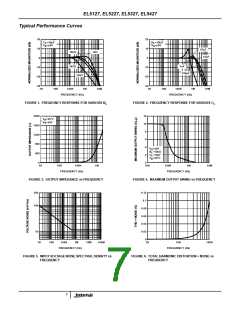

• 2.5MHz -3dB bandwidth
• Supply voltage = 4.5V to 16.5V
• Low supply current (per buffer) = 133µA
• High slew rate = 2.2V/µs
• Rail-to-rail input/output swing
• Ultra-small packages
• Pb-free plus anneal available (RoHS compliant)
Applications
• TFT-LCD drive circuits
• Electronic games
• Touch-screen displays
• Personal communication devices
• Personal digital assistants (PDAs)
• Portable instrumentation
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2004, 2005. All Rights Reserved. All other trademarks mentioned are the property of their respective owners.
