Land Listing and Signal Descriptions

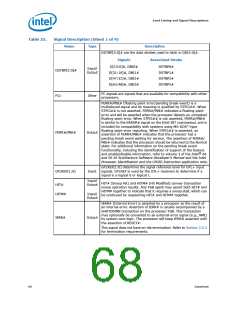

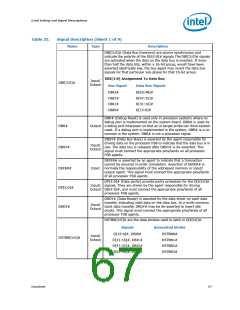

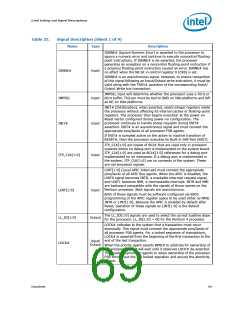

Table 25.
Signal Description (Sheet 1 of 9)
Name
Type
Description
The differential pair BCLK (Bus Clock) determines the FSB
frequency. All processor FSB agents must receive these signals to
drive their outputs and latch their inputs.
BCLK[1:0]
Input
All external timing parameters are specified with respect to the
rising edge of BCLK0 crossing VCROSS
.
BINIT# (Bus Initialization) may be observed and driven by all
processor FSB agents and if used, must connect the appropriate
pins/lands of all such agents. If the BINIT# driver is enabled during
power-on configuration, BINIT# is asserted to signal any bus
condition that prevents reliable future operation.
If BINIT# observation is enabled during power-on configuration,
and BINIT# is sampled asserted, symmetric agents reset their bus
Input/ LOCK# activity and bus request arbitration state machines. The bus
Output agents do not reset their IOQ and transaction tracking state
machines upon observation of BINIT# activation. Once the BINIT#
assertion has been observed, the bus agents will re-arbitrate for
the FSB and attempt completion of their bus queue and IOQ
entries.
BINIT#
If BINIT# observation is disabled during power-on configuration, a
central agent may handle an assertion of BINIT# as appropriate to
the error handling architecture of the system.
BNR# (Block Next Request) is used to assert a bus stall by any bus
agent unable to accept new bus transactions. During a bus stall,
the current bus owner cannot issue any new transactions.
Input/
Output
BNR#
This input is required to determine whether the processor is
installed in a platform that supports the Pentium 4 processor. The
processor will not operate if this signal is low. This input has a weak
BOOTSELECT
Input
internal pull-up to VCC
.
BPM[5:0]# (Breakpoint Monitor) are breakpoint and performance
monitor signals. They are outputs from the processor which
indicate the status of breakpoints and programmable counters used
for monitoring processor performance. BPM[5:0]# should connect
the appropriate pins/lands of all processor FSB agents.
BPM4# provides PRDY# (Probe Ready) functionality for the TAP
port. PRDY# is a processor output used by debug tools to
determine processor debug readiness.
Input/
Output
BPM[5:0]#
BPM5# provides PREQ# (Probe Request) functionality for the TAP
port. PREQ# is used by debug tools to request debug operation of
the processor.
These signals do not have on-die termination. Refer to
Section 2.5.2 for termination requirements.
BPRI# (Bus Priority Request) is used to arbitrate for ownership of
the processor FSB. It must connect the appropriate pins/lands of all
processor FSB agents. Observing BPRI# active (as asserted by the
priority agent) causes all other agents to stop issuing new
requests, unless such requests are part of an ongoing locked
operation. The priority agent keeps BPRI# asserted until all of its
requests are completed, then releases the bus by de-asserting
BPRI#.
BPRI#
Input
