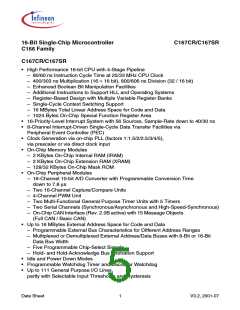

16-Bit Single-Chip Microcontroller
C166 Family
C167CR/C167SR
C167CR/C167SR
• High Performance 16-bit CPU with 4-Stage Pipeline
– 80/60 ns Instruction Cycle Time at 25/33 MHz CPU Clock
– 400/303 ns Multiplication (16 × 16 bit), 800/606 ns Division (32 / 16 bit)
– Enhanced Boolean Bit Manipulation Facilities
– Additional Instructions to Support HLL and Operating Systems
– Register-Based Design with Multiple Variable Register Banks
– Single-Cycle Context Switching Support
– 16 MBytes Total Linear Address Space for Code and Data
– 1024 Bytes On-Chip Special Function Register Area
• 16-Priority-Level Interrupt System with 56 Sources, Sample-Rate down to 40/30 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via
Peripheral Event Controller (PEC)
• Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5),
via prescaler or via direct clock input
• On-Chip Memory Modules
– 2 KBytes On-Chip Internal RAM (IRAM)
– 2 KBytes On-Chip Extension RAM (XRAM)
– 128/32 KBytes On-Chip Mask ROM
• On-Chip Peripheral Modules
– 16-Channel 10-bit A/D Converter with Programmable Conversion Time
down to 7.8 µs
– Two 16-Channel Capture/Compare Units
– 4-Channel PWM Unit
– Two Multi-Functional General Purpose Timer Units with 5 Timers
– Two Serial Channels (Synchronous/Asynchronous and High-Speed-Synchronous)
– On-Chip CAN Interface (Rev. 2.0B active) with 15 Message Objects
(Full CAN / Basic CAN)
• Up to 16 MBytes External Address Space for Code and Data
– Programmable External Bus Characteristics for Different Address Ranges
– Multiplexed or Demultiplexed External Address/Data Buses with 8-Bit or 16-Bit
Data Bus Width
– Five Programmable Chip-Select Signals
– Hold- and Hold-Acknowledge Bus Arbitration Support
• Idle and Power Down Modes
• Programmable Watchdog Timer and Oscillator Watchdog
• Up to 111 General Purpose I/O Lines,
partly with Selectable Input Thresholds and Hysteresis
Data Sheet
1
V3.2, 2001-07
INFINEON [ Infineon ]
