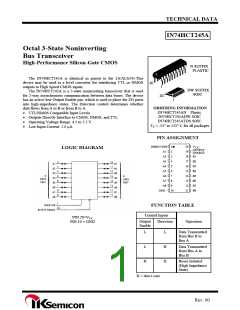

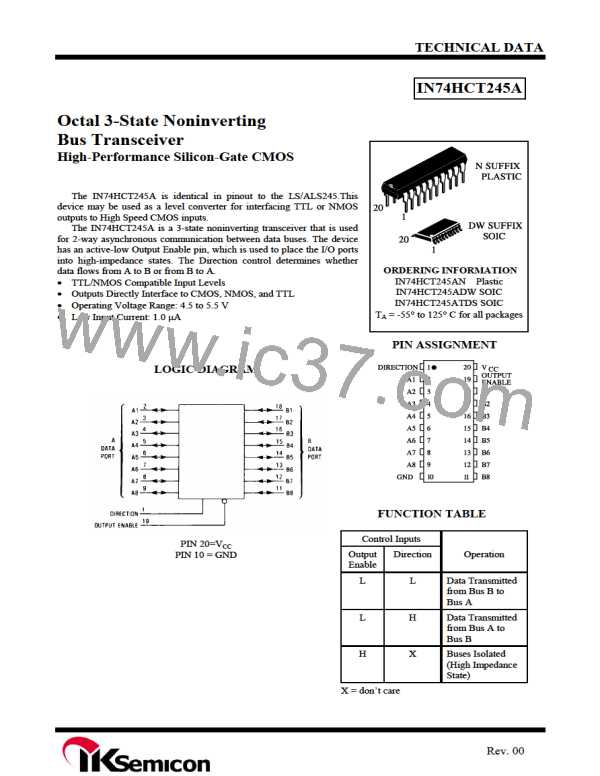

TECHNICAL DATA
IN74HCT245A
Octal 3-State Noninverting
Bus Transceiver
High-Performance Silicon-Gate CMOS
The IN74HCT245A is identical in pinout to the LS/ALS245.This
device may be used as a level converter for interfacing TTL or NMOS
outputs to High Speed CMOS inputs.
The IN74HCT245A is a 3-state noninverting transceiver that is used
for 2-way asynchronous communication between data buses. The device
has an active-low Output Enable pin, which is used to place the I/O ports
into high-impedance states. The Direction control determines whether
data flows from A to B or from B to A.
TTL/NMOS Compatible Input Levels
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 4.5 to 5.5 V
Low Input Current: 1.0
μA

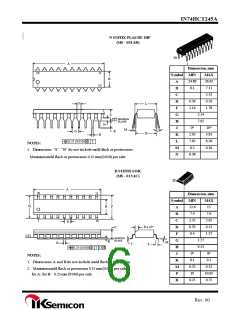

ORDERING INFORMATION
IN74HCT245AN Plastic
IN74HCT245ADW SOIC
IN74HCT245ATDS SOIC
T
A
= -55° to 125° C for all packages
PIN ASSIGNMENT

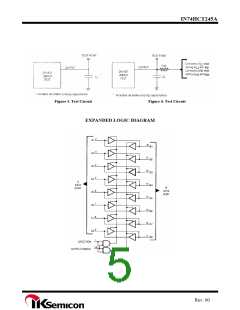

LOGIC DIAGRAM
FUNCTION TABLE
PIN 20=V
CC
PIN 10 = GND
Control Inputs
Output
Enable
L
Direction
L
Operation
Data Transmitted
from Bus B to
Bus A
Data Transmitted
from Bus A to
Bus B
Buses Isolated
(High Impedance
State)
L
H
H
X
X = don’t care
Rev. 00
