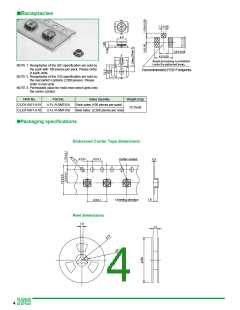

ꢀReceptacles
NOTE 1: Receptacles of the (01) specification are sold by
the pack with 100 pieces per pack. Please order
in pack units.
Recommended PCB Footprints
NOTE 2: Receptacles of the (10) specification are sold by
the reel (which contains 2,500 pieces). Please
order in reel units.
NOTE 3: Permissible value for mold resin which gets onto
the center contact.
HRS No.
Part No.
Sales Quantity
Weight (mg)
15.7/unit
CL331-0471-0-01
CL331-0471-0-10
U.FL-R-SMT(01)
U.FL-R-SMT(10)
Pack sales (100 pieces per pack)
Reel sales (2,500 pieces per reel)
ꢀPackaging specifications
Embossed Carrier Tape dimensions
Unreeling direction
Reel dimensions
4
HRS [ HRS ]
