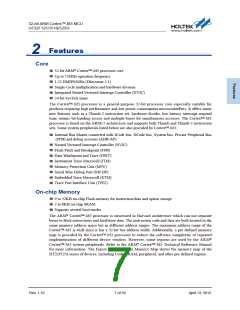

Core
Features
®
▀
32-bit ARM Cortex™-M3 processor core
▀
Up to 72MHz operation frequency
▀
1.25 DMIPS/MHz (Dhrystone 2.1)
▀
Single-cycle multiplication and hardware division
▀
Integrated Nested Vectored Interrupt Controller (NVIC)
▀
24-bit SysTick timer
The Cortex™-M3 processor is a general-purpose 32-bit processor core especially suitable for
products requiring high performance and low power consumption microcontrollers. It offers many
new features such as a Thumb-2 instruction set, hardware divider, low latency interrupt respond
time, atomic bit-banding access and multiple buses for simultaneous accesses. The Cortex™-M3
processor is based on the ARMv7 architecture and supports both Thumb and Thumb-2 instruction
sets. Some system peripherals listed below are also provided by Cortex™-M3:
Features
▀
Internal Bus Matrix connected with ICode bus, DCode bus, System bus, Private Peripheral Bus
(PPB) and debug accesses (AHB-AP)
▀
Nested Vectored Interrupt Controller (NVIC)
▀
Flash Patch and Breakpoint (FPB)
▀
Data Watchpoint and Trace (DWT)
▀
Instrument Trace Macrocell (ITM)
▀
Memory Protection Unit (MPU)
▀
Serial Wire Debug Port (SW-DP)
▀
Embedded Trace Macrocell (ETM)
▀
Trace Port Interface Unit (TPIU)
On-chip Memory
▀
9 to 32KB on-chip Flash memory for instruction/data and option storage
▀
2 to 8KB on-chip SRAM
▀
Supports several boot modes
The ARM
®
Cortex™-M3 processor is structured in Harvard architecture which can use separate
buses to fetch instructions and load/store data. The instruction code and data are both located in the
same memory address space but in different address ranges. The maximum address range of the
Cortex™-M3 is 4GB since it has a 32-bit bus address width. Additionally,
a pre-defined memory
map is provided by the Cortex™-M3 processor to reduce the software complexity of repeated
implementation of different device vendors. However, some regions are used by the ARM
®
Cortex™-M3 system peripherals. Refer to the ARM
®
Cortex™-M3 Technical Reference Manual
for more information. The Figure 2. HT32F125x Memory Map shows the memory map of the
HT32F125x series of devices,
including Code, SRAM, peripheral, and other pre-defined regions.
